Overview

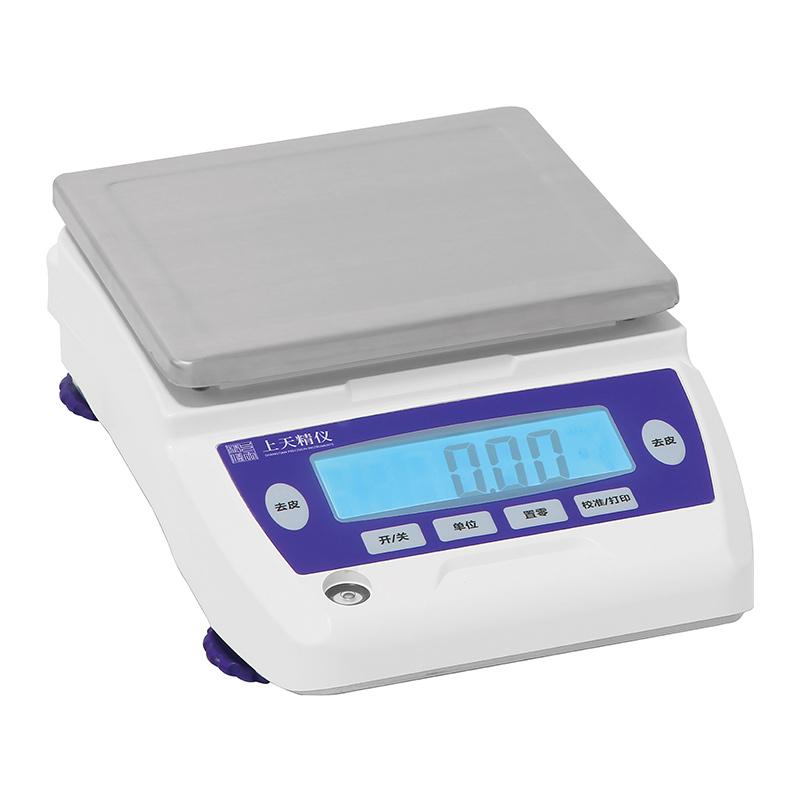

Shangtian Jingyi JA22002C One Percent Electronic Balance is a High Accuracy weighing equipment, Capacity 2200g, readability accuracy 0.01g, using a new generation of High Accuracy Sensor to ensure stable and reliable weighing. Equipped with backlit high definition LCD LCD display, the display is clear and intuitive, suitable for laboratories, industries and other environments.
Features
1. A New Generation of High Accuracy Sensors, Providing Stable and Reliable Weighing Results
2. Backlit high definition LCD LCD display, weighing results are clearly displayed
3. Front horizontal bubble adjustment, simple and intuitive operation
4. Fully automatic internal calibration triggered by time and temperature
5. The weighing stability time and reaction speed are adjustable, and the reaction time is < 2S
6. Various weighing units: mg/g/ct/oz, etc
7. Standard RS232 interface, optional PC-STWC function to transfer weighing data directly to open applications such as Excel
8. Power supply: 110V-240V, 50Hz/60Hz
9. Optional functions: dynamic weighing, USB storage, lower hook, battery, printer, second display screen, Draft Shield, check and alarm light, etc
Principle
The Electronic Balance detects the weight signal through the High Accuracy Sensor and converts the signal into a digital display on the LCD screen. It adopts a fully automatic internal calibrating mechanism to automatically adjust the accuracy according to time or temperature changes to ensure the accuracy of weighing. Fast response speed and adjustable stability time to meet different application needs.
Applications
Laboratory, industry, scientific research, education, medical care, pharmacy, food, chemical industry
Steps
1. Place the Balance on a smooth surface and adjust the level through the front horizontal bubble
2. Connect Power Adapter, input voltage 110-240V
3. Wait for auto calibration to complete after booting
4. Place the sample for weighing and read the LCD display results
5. Optional connection to RS232 interface to transfer data to computer or use Miscellaneous optional function
Notice
• The operation temperature range is 10~ 30 ℃, avoid using in extreme temperatures
• Ensure that the Power Adapter input voltage is within the range of 110-240V
• Check the horizontal bubble before weighing to ensure that the equipment is placed horizontally
Periodically calibrated internally to maintain accuracy
• Avoid overloading, Capacity does not exceed 2200g
• Keep the pan clean to prevent affecting the weighing results
