Overview

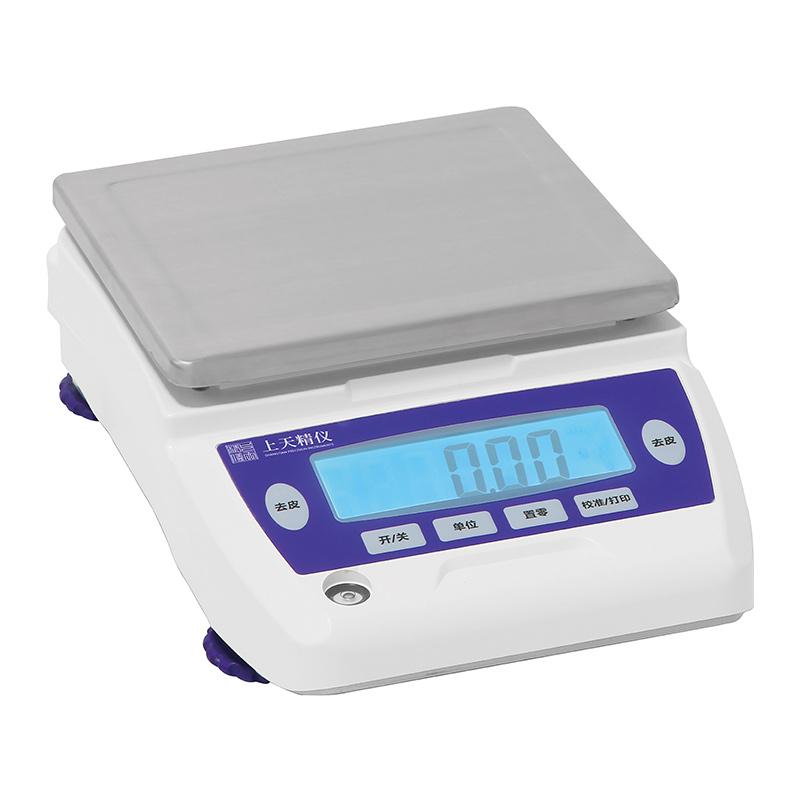

Shangtian Jingyi JA32002C One Percent Electronic Balance is a High Accuracy weighing device with a Capacity of 3200g and a readability accuracy of 0.01g. It adopts a new generation of Sensor technology to provide stable and reliable weighing results. Equipped with a backlit high definition LCD display and a variety of practical functions, it is suitable for accurate weighing needs in laboratories, industries and other fields.
Features
1. A New Generation of High Accuracy Sensors, Providing Stable and Reliable Weighing Results
2. Backlit high definition LCD LCD display, weighing results are clearly displayed
3. Front horizontal bubble adjustment, simple and intuitive operation
4. Fully automatic internal calibration triggered by time and temperature
5. The weighing stability time and reaction speed are adjustable, and the reaction time is < 2S
6. Various weighing units: mg/g/ct/oz, etc
7. Standard RS232 interface, optional PC-STWC function to transfer weighing data directly to open applications such as Excel
8. Power supply: 110V-240V, 50Hz/60Hz
9. Optional functions: dynamic weighing, USB storage, lower hook, battery, printer, second display screen, Draft Shield, check and alarm light, etc
Principle
The Electronic Balance uses High Accuracy Sensor technology, which detects the pressure change generated by the weighing object on the Sensor, converts it into an electrical signal and processes the display. It has a fully automatic internal calibrating function, which can automatically adjust the accuracy according to time or temperature changes to ensure the accuracy and stability of the weighing result.
Applications
Laboratory, industry, scientific research, education, pharmaceuticals, chemicals, food, jewelry
Steps
1. Place the Balance on a stable countertop and adjust it to a horizontal state through the front horizontal bubble
2. Connect Power Adapter (input 110-240V, output 12V1A)
3. Turn it on to warm up and wait for stability.
4. Select the weighing unit as required (mg/g/ct/oz, etc.)
5. Place the item to be weighed in the pan (size 192x171mm)
6. Read the stable weighing results on the LCD display
7. Optional use of RS232 interface to connect to computer or peripherals to transmit data
Notice
• The operation temperature range is 10~ 30 ℃, please ensure that it is used in a suitable environment
• Be sure to adjust the horizontal bubble to a horizontal state before use to ensure the accuracy of weighing
• Avoid overloading, Capacity does not exceed 3200g
Periodically calibrated internally to ensure accuracy
• Please use a soft dry cloth when cleaning to avoid liquids entering the equipment
• Power Adapter input voltage range is 110-240V, please confirm local voltage matching
