Overview

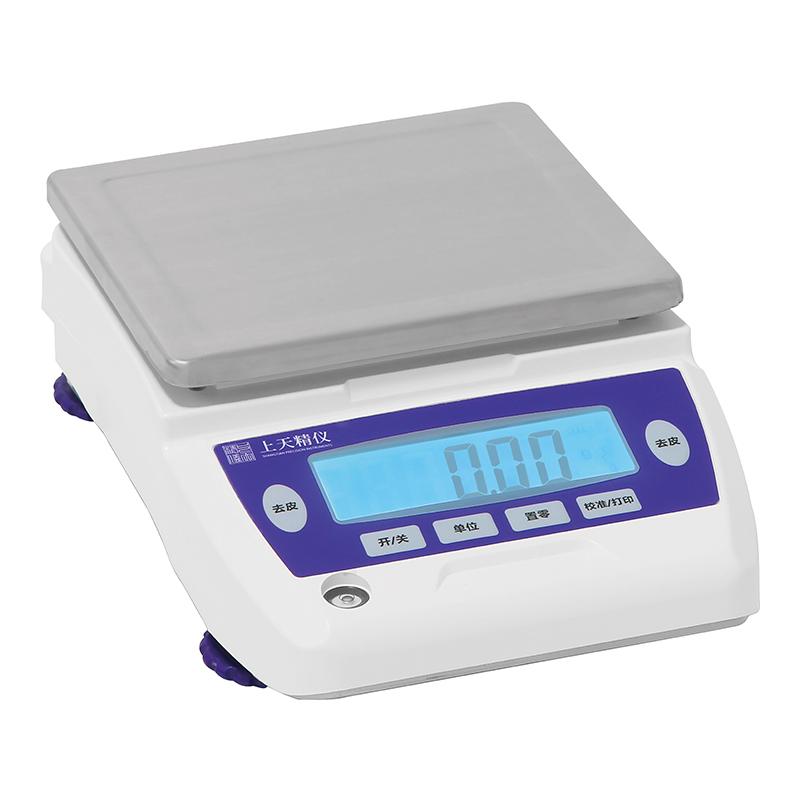

JY2002 One Percent Electronic Balance is an intelligent Electronic Balance of Shangtian Jingyi brand. It is composed of a high stability Sensor and a single-chip microcomputer to solve the creep and linearity problems of the resistance strain Sensor. The Balance is accurate, fast and stable, easy to operate and has complete functions. It is suitable for rapid measurement of the mass and quantity of objects in industries, agriculture, commerce, schools, scientific research and other units.
Features
1. A New Generation of High Accuracy Sensors, Providing Stable and Reliable Weighing Results
2. Backlit high definition LCD LCD display, weighing results are clearly displayed
3.The pan is made of stainless steel 304, which is easy to clean and durable
4. Automatic fault detection, overload protection
5. Various weighing units g/kg/ct/oz, etc
6. Power supply: 110V-240V, 50Hz/60Hz
7. Built-in rechargeable battery, supports long-term uninterrupted use (except JY50002 and JY1003-JY5003)
8. Standard RS232 interface, optional PC-STWC function to transfer weighing data directly to open applications such as Excel (JY1003-JY5003)
9. Optional functions: dynamic weighing, USB storage, battery, printer, second display screen, lower hook, weight check alarm light, etc. (JY1003-JY5003)
Principle
JY2002 Electronic Balance uses a high stability Sensor and a single chip microcomputer to form an intelligent system. The mass of the object is detected by the Sensor and converted into electrical signals, and the data is processed by the microcomputer to achieve accurate weighing. It solves the creep and linearity problems caused by the resistance strain Sensor and ensures the accuracy and stability of the weighing results.
Applications
Industry, agriculture, commerce, schools, scientific research
Steps
1. Connect the power supply or use the built-in battery.
2. Balance power on
3. Conduct self-study operations (if required)
4. Place the object to be weighed on the pan
5. Read the weighing results on the display
6. Use the tare weight function (if necessary)
7. Optional data export or counting function
Notice
• The operation temperature range is 10~ 30 ℃, please ensure that it is used in a suitable environment
• Avoid overloading to prevent damage to the Sensor
• Regularly clean the stainless steel pan to maintain hygiene
When using the adapter, ensure that the input voltage is within the range of 110-240V
• Please pay attention to the applicability of the built-in battery model (except JY50002 and JY1003-JY5003)
• Optional features are only available for certain models (e.g. JY1003-JY5003)
