Overview

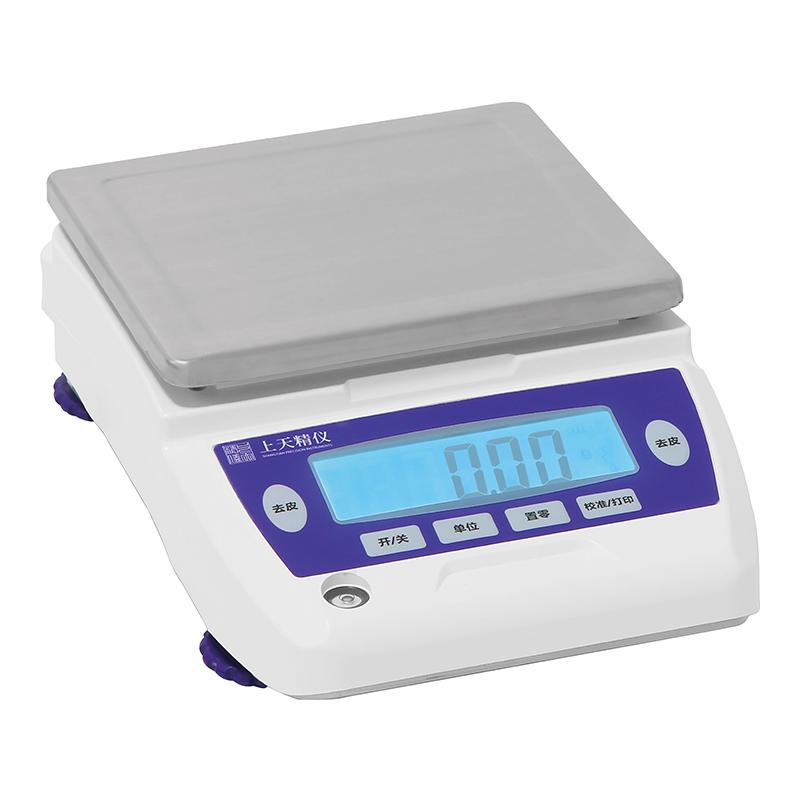

JY3002 One percent Electronic Balance is an intelligent Balance composed of high stability Sensor and single-chip microunit of Shangtian Jingyi brand, which solves the creep and linearity problems of resistance strain Sensor. It has functions such as de-tare weight, self-calibration, memory, counting, fault display, etc. It has accurate weighing, fast and stable, simple operation and complete functions. It is suitable for rapid measurement of object mass and quantity in industrial, agricultural, commercial, school, scientific research and other units.
Features
1. A New Generation of High Accuracy Sensors, Providing Stable and Reliable Weighing Results
2. Backlit high definition LCD LCD display, weighing results are clearly displayed
3.The pan is made of stainless steel 304, which is easy to clean and durable
4. Automatic fault detection, overload protection
5. Various weighing units g/kg/ct/oz, etc
6. Power supply: 110V-240V, 50Hz/60Hz
7. Built-in rechargeable battery, supports long-term uninterrupted use (except JY50002 and JY1003-JY5003)
8. Standard RS232 interface, optional PC-STWC function to transfer weighing data directly to open applications such as Excel (JY1003-JY5003)
9. Optional functions: dynamic weighing, USB storage, battery, printer, second display screen, lower hook, weight check alarm light, etc. (JY1003-JY5003)
Principle
JY3002 Electronic Balance adopts intelligent system composed of high stability Sensor and single chip microcomputer. The weight signal is detected by Sensor, and accurate weighing is realized by microcomputer processing, which solves the creep and linearity problems of traditional resistance strain Sensor.
Applications
Industry, agriculture, commerce, schools, scientific research
Steps
1. Connect the Power Adapter or use the built-in battery
2. Turn on the self-test and wait for the stable display.
3. Place the object to be weighed on the pan
4. Read the weight data on the display
5. Use peeling function to remove container weight
6. Optional functions such as counting or data output via RS232 interface
Notice
• The operation temperature range is 10~ 30 ℃ to ensure that it is used in a suitable environment
• Avoid overloading to prevent damage to the Sensor
• Regularly clean the stainless steel pan to maintain hygiene
When using the adapter, ensure that the input voltage is within the range of 110-240V
• Pay attention to the applicability of the built-in battery model, and some models do not support uninterrupted use
• Optional functions need to be confirmed according to the specific model, such as JY1003-JY5003 supports PC-STWC, etc
