Overview

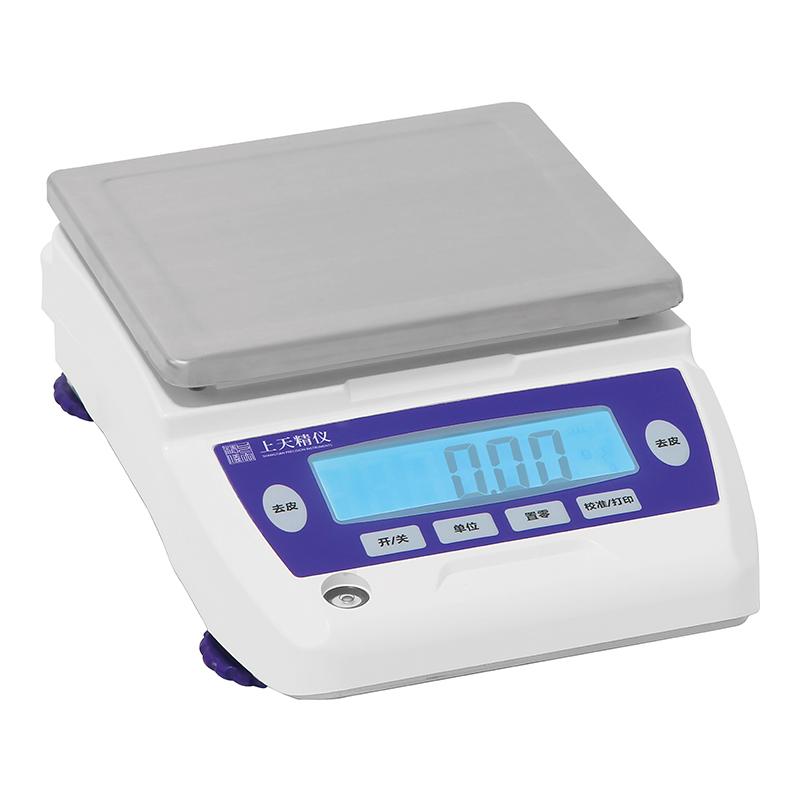

JY5002 One percent Electronic Balance is an intelligent Balance composed of high stability Sensor and single-chip microunit of Shangtian Jingyi brand, which solves the creep and linearity problems of resistance strain Sensor. It has functions such as de-tare weight, self-calibration, memory, counting, fault display, etc. It has accurate weighing, fast and stable, simple operation and complete functions. It is suitable for rapid measurement of object mass and quantity in industrial, agricultural, commercial, school, scientific research and other units.
Features
1. A New Generation of High Accuracy Sensors, Providing Stable and Reliable Weighing Results
2. Backlit high definition LCD LCD display, weighing results are clearly displayed
3.The pan is made of stainless steel 304, which is easy to clean and durable
4. Automatic fault detection, overload protection
5. Various weighing units g/kg/ct/oz, etc
6. Power supply: 110V-240V, 50Hz/60Hz
7. Built-in rechargeable battery, supports long-term uninterrupted use (except JY50002 and JY1003-JY5003)
8. Standard RS232 interface, optional PC-STWC function to transfer weighing data directly to open applications such as Excel (JY1003-JY5003)
9. Optional functions: dynamic weighing, USB storage, battery, printer, second display screen, lower hook, weight check alarm light, etc. (JY1003-JY5003)
Principle
JY5002 Electronic Balance adopts an intelligent system composed of high stability Sensor and monolithic microunit. The weight signal is detected by the Sensor, and the result is displayed on the LCD display screen after processing by the microprocessor, and the functions of de-tare weight, self-calibration, memory, and counting are realized.
Applications
Industry, agriculture, commerce, schools, scientific research
Steps
1. Place the Balance on a smooth table and connect the Power Adapter (input 110-240V 0.5A 50/60Hz, output 9V 0.5A)
2. Boot preheating to ensure that the operating temperature is within the range of 10~ 30 ° C
3. Use the external calibrate function to calibrate
4. Place the object to be tested on the stainless steel pan (size 126 * 137mm)
5. Read the weighing results on the LCD display, and choose units such as g/kg/ct/oz
6. Use peeling function to remove container weight
7. Optional connection to RS232 interface or PC-STWC function to transmit data
Notice
• Ensure that the Working Ambient Temperature is within the range of 10~ 30 ℃
• Avoid overloading to prevent damage to the Sensor
• Regularly clean the stainless steel pan to maintain hygiene
• Pay attention to the input voltage range 110-240V when using the adapter
• External calibrating function is required for calibrating
• Built-in battery models (except JY50002 and JY1003-JY5003) support long-term use, pay attention to charging
