Overview

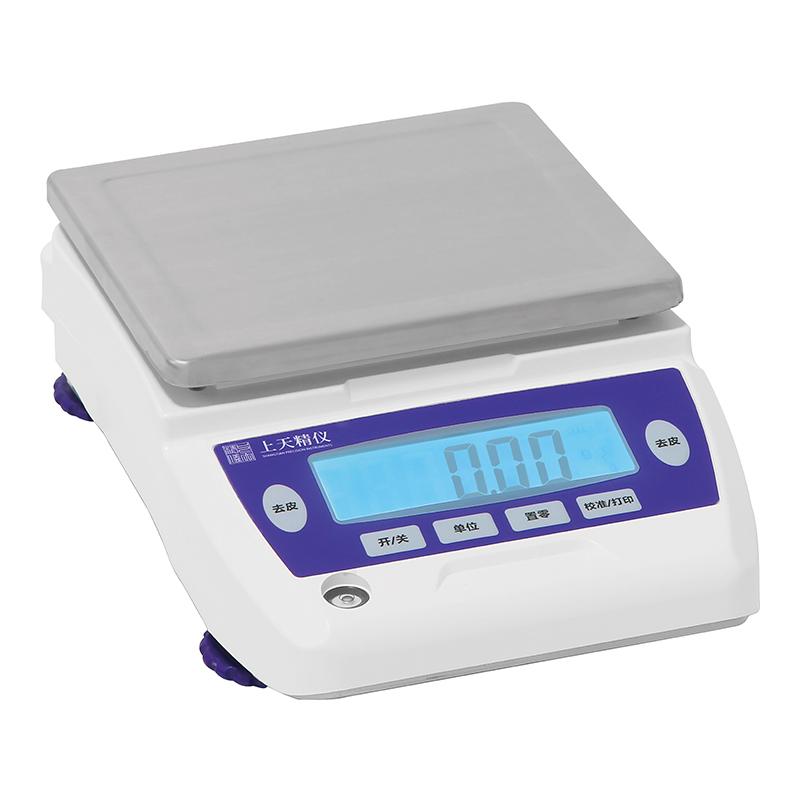

JY6002 One Percent Electronic Balance is an intelligent Balance launched by Shangtian Jingyi brand. It is composed of a high-stability Sensor and a single-chip microcomputer to solve the creep and linearity problems of the resistance strain Sensor. The Balance is accurate, fast and stable, easy to operate and has complete functions. It is suitable for rapid measurement of the mass and quantity of objects in industrial, agricultural, commercial, school, scientific research and other units.
Features
1. A New Generation of High Accuracy Sensors, Providing Stable and Reliable Weighing Results
2. Backlit high definition LCD LCD display, weighing results are clearly displayed
3.The pan is made of stainless steel 304, which is easy to clean and durable
4. Automatic fault detection, overload protection
5. Various weighing units g/kg/ct/oz, etc
6. Power supply: 110V-240V, 50Hz/60Hz
7. Built-in rechargeable battery, supports long-term uninterrupted use (except JY50002 and JY1003-JY5003)
8. Standard RS232 interface, optional PC-STWC function to transfer weighing data directly to open applications such as Excel (JY1003-JY5003)
9. Optional functions: dynamic weighing, USB storage, battery, printer, second display screen, lower hook, weight check alarm light, etc. (JY1003-JY5003)
Principle
JY6002 Electronic Balance adopts the intelligent system composed of high stability Sensor and single chip microcomputer, detects the weight signal through the Sensor, displays the result on the LCD display screen after processing by the microcomputer, and realizes the functions of de-tare weight, self-calibration, memory, counting and so on.
Applications
Industry, agriculture, commerce, schools, scientific research
Steps
1. Connect the Power Adapter or use the built-in battery
2. Boot warm-up
3. Place the object to be weighed in the pan
4. Read the weighing results on the display
5. Use peeling function to remove container weight
6. Optional connection to external devices to transfer data
Notice
• operation temperature range is 10~ 30 ℃
• Avoid overloading to prevent damage to the Sensor
• Regularly clean stainless steel pans to maintain accuracy
• Make sure the input voltage is within the range of 110-240V when using the adapter
• It is recommended to disconnect the power supply when not in use for a long time
