Overview

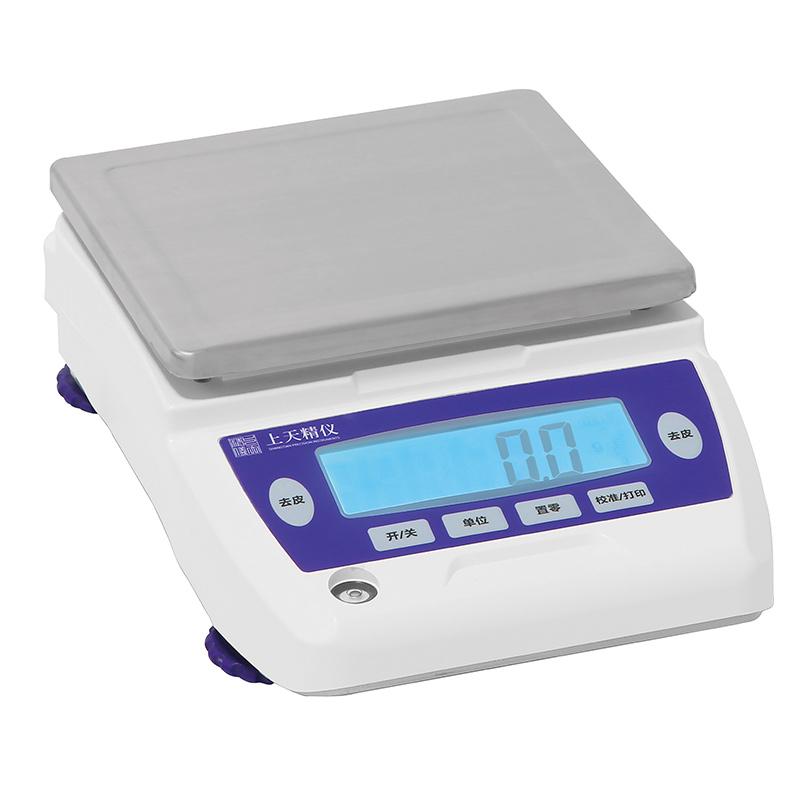

Shangtian Jingyi JA12001 One-tenth Electronic Balance is a High Accuracy weighing device with Capacity 1200g and readability accuracy 0.1g. The product adopts a new generation of Sensor technology, is equipped with a backlit high definition LCD display, supports a variety of weighing units and external calibrating functions, and is suitable for precise weighing needs in laboratories, industries and other fields.
Features
1. A New Generation of High Accuracy Sensors, Providing Stable and Reliable Weighing Results
2. Backlit high definition LCD LCD display, weighing results are clearly displayed
3. Front horizontal bubble adjustment, simple and intuitive operation
4. External calibrating function
5. The weighing stability time and reaction speed are adjustable, and the reaction time is < 2S
6. Support a variety of weighing units: mg/g/ct/oz, etc
7. Standard RS232 interface, optional PC-STWC function to transfer weighing data directly to open applications such as Excel
8. Power Adapter supports 110V-240V, 50Hz/60Hz wide voltage input
9. Provide a wealth of optional functions: dynamic weighing, USB storage, lower hook, battery, printer, second display screen, Draft Shield, weight check alarm light, etc
Principle
The Electronic Balance detects the weight of the measured object through the High Accuracy Sensor, converts the weight signal into an electrical signal, and clearly displays the weighing result on the LCD display after being processed by the internal processor. Support external calibrating to ensure measurement accuracy, and the RS232 interface can realize data transmission.
Applications
Laboratory, industrial manufacturing, quality control, scientific research and education, pharmaceutical production, Food processing, Jewelry weighing
Standards
The product information does not mention specific compliance standards
Steps
1. Place the Balance on a stable countertop and adjust it to a horizontal state through the front horizontal bubble
2. Connect Power Adapter (input 110-240V, output 12V 1A)
3. Turn it on to warm up and wait for stability.
4. Select the weighing unit as required (mg/g/ct/oz, etc.)
5. Place the item to be tested on the pan for weighing
6. Read the weighing results on the LCD display
7. Optional connection to RS232 interface for data transmission
8. Turn off the power after use
Notice
• Ambient Temperature should be kept within 10~ 30 ℃
• Ensure that Balance is placed on a level surface
• Avoid use in strong electromagnetic interference environments
Periodic external calibration to ensure measurement accuracy
• Pay attention to the Power Adapter input voltage range (110-240V)
• Avoid exceeding the Capacity limit of 1200g
• Keep the pan clean and avoid contact with corrosive substances
• Pay attention to shock and moisture protection during transportation and storage
