Overview

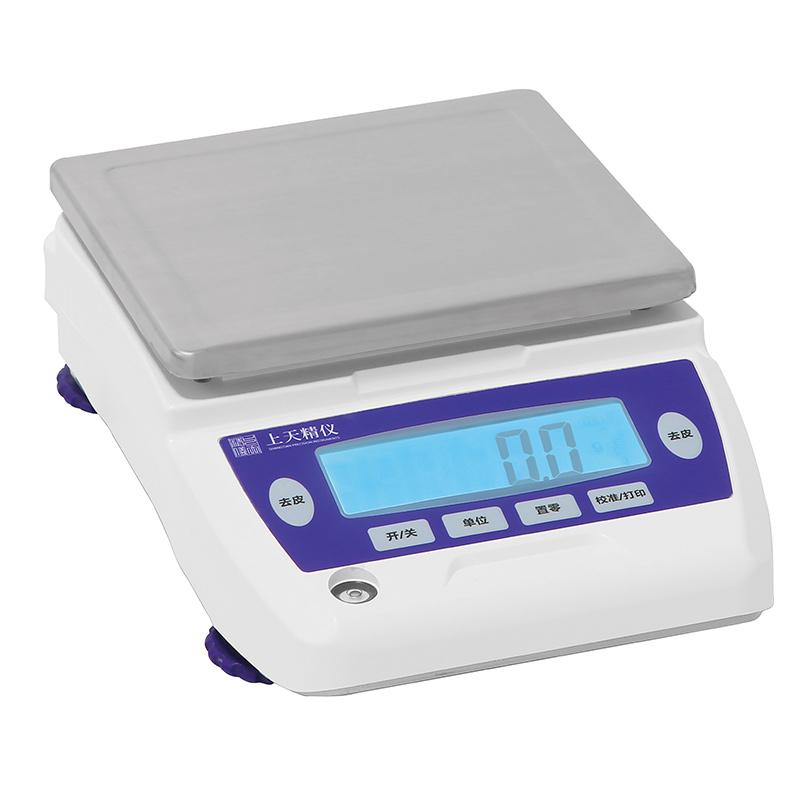

Shangtian Jingyi JA32001 One-tenth Electronic Balance is a High Accuracy weighing equipment, Capacity 3200g, readability accuracy 0.1g, using a new generation of High Accuracy Sensor to ensure stable and reliable weighing. Equipped with backlit high definition LCD LCD display, the display is clear and intuitive, suitable for laboratories, industries and other environments.
Features
1. A New Generation of High Accuracy Sensors, Providing Stable and Reliable Weighing Results
2. Backlit high definition LCD LCD display, weighing results are clearly displayed
3. Front horizontal bubble adjustment, simple and intuitive operation
4. External calibrating function
5. The weighing stability time and reaction speed are adjustable, and the reaction time is < 2S
6. Various weighing units: mg/g/ct/oz, etc
7. Standard RS232 interface, optional PC-STWC function to transfer weighing data directly to open applications such as Excel
8. Power supply: 110V-240V, 50Hz/60Hz
9. Optional functions: dynamic weighing, USB storage, lower hook, battery, printer, second display screen, Draft Shield, check and alarm light, etc
Principle
Electronic Balance detects the weight of the measured object through the High Accuracy Sensor, converts the signal into a digital display on the LCD screen. The external calibrating function ensures weighing accuracy, and multiple unit conversions and interfaces support data output.
Applications
Laboratory, industry, scientific research, education, pharmacy, food, chemical industry
Steps
1. Place the Balance on a smooth countertop and adjust the level through the front horizontal bubble
2. Connect Power Adapter (input 110-240V 50/60Hz, output 12V 1A)
3. Turn it on and preheat, and choose the weighing unit (mg/g/ct/oz, etc.) as needed.
4. Externally calibrated to ensure accuracy
5. Place the sample for weighing, and the LCD screen displays the result
6. Optional RS232 interface to connect to the computer, use PC-STWC function to transfer data to Excel
Notice
• The operation temperature range is 10~ 30 ℃, avoid using in extreme temperatures
• Ensure that the sample is placed within Pan Size 192x171mm to avoid overloading (maximum 3200g)
• Check the horizontal bubble before use to ensure that the Balance is placed horizontally
Periodic external calibrating to maintain accuracy
• Power Adapter input voltage needs to match 110-240V to avoid voltage instability
• Optional functions such as dynamic weighing, USB storage, etc. need to be operated according to the instructions
