Overview

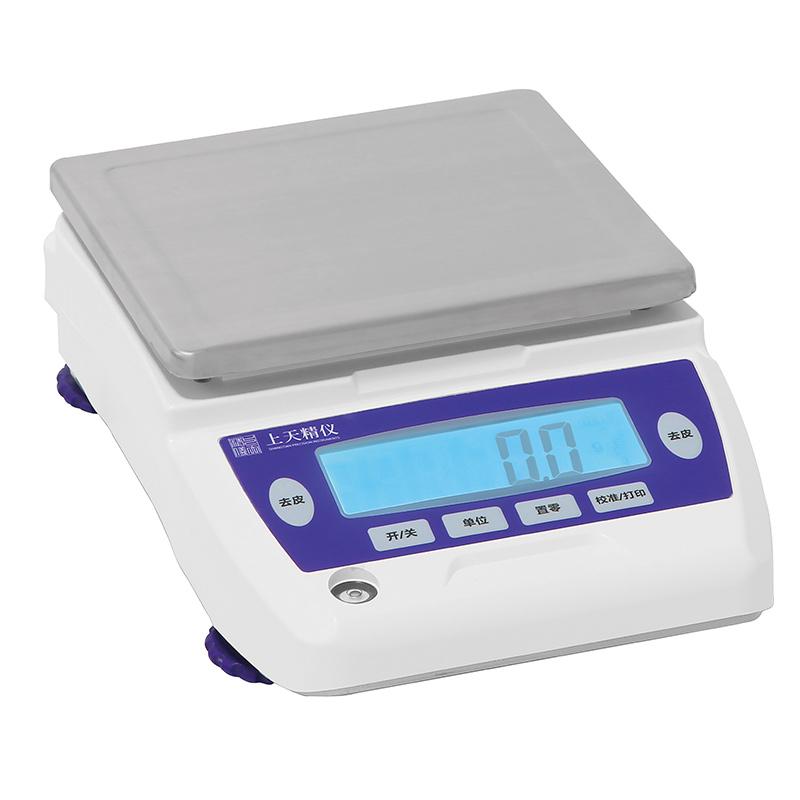

Shangtian Jingyi JA52001 1/10 Electronic Balance is a High Accuracy weighing device with a Capacity of 5200g and a readability accuracy of 0.1g. It uses a new generation of High Accuracy Sensor to provide stable and reliable weighing results, suitable for a variety of industrial and research environments.
Features
1. A New Generation of High Accuracy Sensors, Providing Stable and Reliable Weighing Results
2. Backlit high definition LCD LCD display, weighing results are clearly displayed
3. Front horizontal bubble adjustment, simple and intuitive operation
4. External calibrating function
5. The weighing stability time and reaction speed are adjustable, and the reaction time is < 2S
6. Various weighing units: mg/g/ct/oz, etc
7. Standard RS232 interface, optional PC-STWC function to transfer weighing data directly to open applications such as Excel
8. Power supply: 110V-240V, 50Hz/60Hz
9. Optional functions: dynamic weighing, USB storage, lower hook, battery, printer, second display screen, Draft Shield, check and alarm light, etc
Principle
The Electronic Balance detects weight through the High Accuracy Sensor and converts the signal into a digital display on the LCD screen. The user can adjust the level of the device through the front level bubble to ensure the level of the device, the external calibrate function guarantees the weighing accuracy, the reaction time is fast, and it supports a variety of unit conversions and data output.
Applications
Industrial weighing, laboratory research, quality control, educational experiments, jewelry weighing, Food processing, pharmaceutical manufacturing
Steps
1. Place the Balance on a smooth surface and adjust the level through the front horizontal bubble
2. Connect Power Adapter, input voltage 110-240V
3. Wait for stability after booting, and select the desired weighing unit
4. Place the sample for weighing and read the LCD display result
5. Use peeling function to remove container weight
6. Optional connection to RS232 interface to transfer data to computer or external device
7. Shut down and disconnect the power
Notice
• Ensure that the Working Ambient Temperature is within the range of 10~ 30 ℃
• Check the horizontal bubble before use and keep the equipment level
• Avoid overloading, Capacity does not exceed 5200g
Periodically calibrated to ensure accuracy
• Power Adapter input needs to match 110-240V voltage
• Avoid liquids from entering the equipment when cleaning
• Pay attention to shock and moisture protection during transportation and storage
