Overview

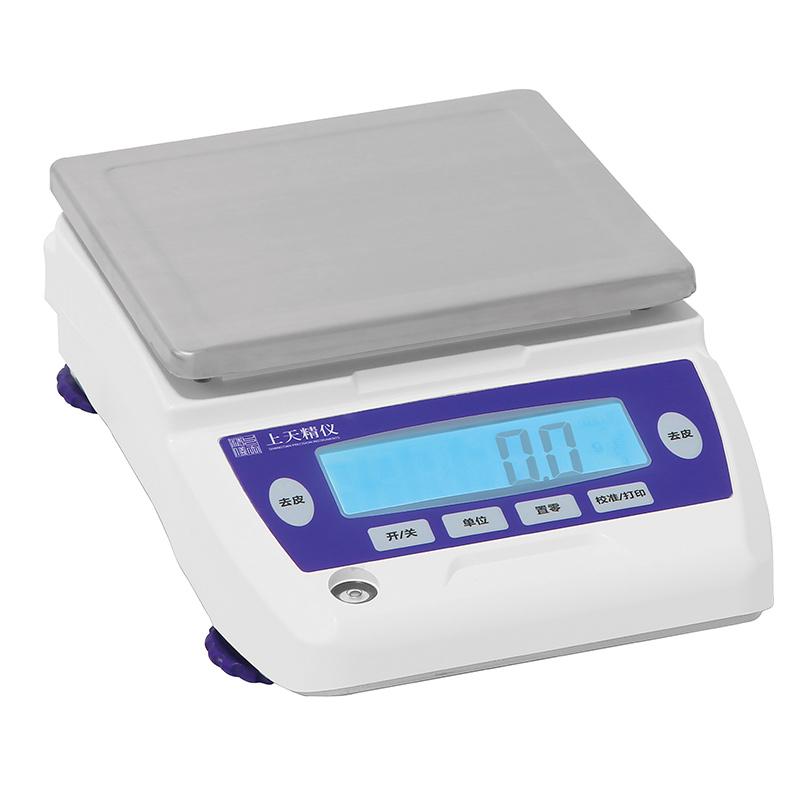

Shangtian Jingyi JA62001 1/10 Electronic Balance is a High Accuracy weighing device, Capacity 6200g, readability accuracy 0.1g, equipped with backlit high definition LCD display, supports a variety of weighing units and external calibrating functions.
Features
1. Adopt a new generation of High Accuracy Sensors to provide stable and reliable weighing results
2. Backlit high definition LCD LCD display, weighing results are clearly displayed
3. Front horizontal bubble adjustment, simple and intuitive operation
4. Support external calibrating
5. The weighing stability time and reaction speed are adjustable, and the reaction time is < 2S
6. Support a variety of weighing units: mg/g/ct/oz, etc
7. Standard RS232 interface, optional PC-STWC function to transfer weighing data directly to open applications such as Excel
8. Power Adapter supports 110V-240V, 50Hz/60Hz
9. Rich optional functions: dynamic weighing, USB storage, lower hook, battery, printer, second display screen, Draft Shield, check alarm light, etc
Principle
The Electronic Balance detects the weight of the object through the High Accuracy Sensor, converts the weight signal into an electrical signal, and clearly displays the weighing result through the LCD display after processing. It supports a variety of weighing unit switching and data transmission.
Applications
Laboratory, industrial weighing, jewelry weighing, drug weighing, food weighing, education and research
Steps
1. Place the Balance on a smooth countertop and adjust the level through the front horizontal bubble
2. Power Adapter
3. External calibrating after startup preheating
4. Place items to be weighed on the pan
5. Read the weighing results on the LCD display
6. Transfer data to computer or Miscellaneous equipment via RS232 interface
Notice
• The operation temperature range is 10~ 30 ℃, please use it within this temperature range
• Balance level before use
• Periodic external calibrating to ensure weighing accuracy
• Avoid use in strong electromagnetic interference environments
• Capacity should not exceed 6200g
• Keep the pan clean and avoid contact with corrosive substances
• Power Adapter input voltage range is 110-240V, please ensure voltage matching
