Overview

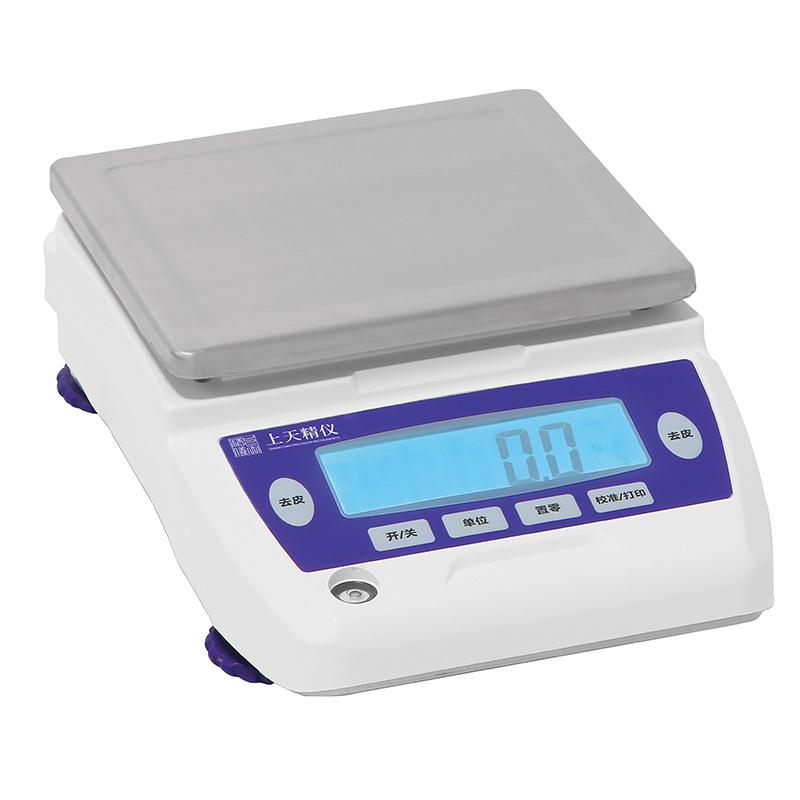

Shangtian Jingyi JA100001 One-tenth Electronic Balance is a High Accuracy weighing device with Capacity 10000g and readability accuracy 0.1g. It adopts a new generation of High Accuracy Sensor to provide stable and reliable weighing results, suitable for various weighing scenarios such as laboratories and industries.
Features
1. A New Generation of High Accuracy Sensors, Providing Stable and Reliable Weighing Results
2. Backlit high definition LCD LCD display, weighing results are clearly displayed
3. Front horizontal bubble adjustment, simple and intuitive operation
4. External calibrating function
5. The weighing stability time and reaction speed are adjustable, and the reaction time is < 2S
6. Various weighing units: mg/g/ct/oz, etc
7. Standard RS232 interface, optional PC-STWC function to transfer weighing data directly to open applications such as Excel
8. Power supply: 110V-240V, 50Hz/60Hz
9. Optional functions: dynamic weighing, USB storage, lower hook, battery, printer, second display screen, Draft Shield, check and alarm light, etc
Principle
Electronic Balance detects the weight of the object through the High Accuracy Sensor, converts the weight signal into an electrical signal, and displays the weighing result through the backlit high definition LCD LCD after processing. Support external calibrating to ensure weighing accuracy, and the response time is less than 2 seconds.
Applications
Laboratory, industrial weighing, quality control, teaching and research, drug weighing, jewelry weighing
Standards
General Standard for Electronic Balance
Steps
1. Place the Balance on a smooth countertop and adjust the level through the front horizontal bubble
2. Connect Power Adapter (input 110-240V 50/60Hz, output 12V 1A)
3. Turn it on and warm up until the display screen is stable.
4. If you need to calibrate, perform external calibrating operation
5. Place the item to be weighed on the pan (size 192x171mm)
6. Read the weighing results on the display
7. Data can be transferred by connecting to a computer through the RS232 interface
Notice
• The operation temperature range is 10~ 30 ℃, do not use in an environment beyond this range
• Ensure that Balance is placed on a stable table to avoid vibration affecting weighing accuracy
• Please check the horizontal bubble before use to ensure that the Balance is level
• Avoid overloading, Capacity does not exceed 10000g
• Periodic external calibrating to ensure weighing accuracy
• Please use a soft cloth when cleaning to avoid liquids entering the equipment
