Overview

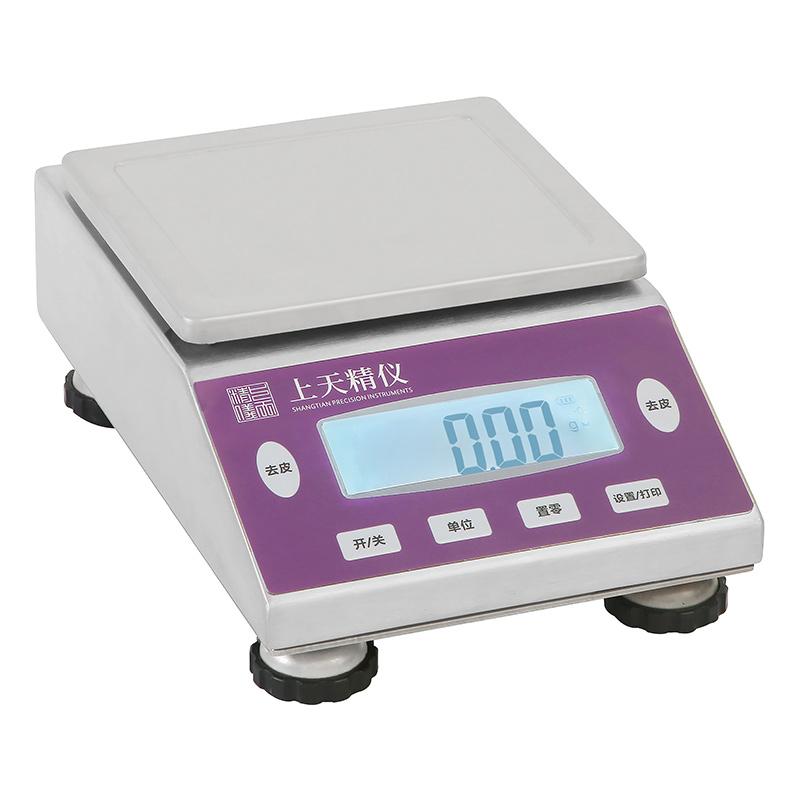

The GL30002S stainless steel application Balance is a High Accuracy weighing device made of stainless steel 304, with stable and reliable weighing performance and clear display effect. It supports a variety of weighing units, has a built-in rechargeable battery, and is equipped with an RS232 interface, which is suitable for a variety of weighing application scenarios.
Features
1. Adopt a new generation of High Accuracy Sensors to provide stable and reliable weighing results
2. Backlit high definition LCD LCD display, weighing results are clearly displayed
3. The scale body is made of stainless steel 304, which is easy to clean and durable
4. Adjustable function of multi-stage shockproof filter
5. Support a variety of weighing units, including g, kg, ct, oz, etc
6. Built-in rechargeable battery, supports long-term uninterrupted use
7. Optional lower hook design to meet users' special application needs
8. Standard RS232 interface, optional PC-STWC function to transfer weighing data directly to open applications such as Excel
9. Power Adapter supports 110V-240V input, 50Hz/60Hz frequency
Principle
The Balance detects the weight of the object through the High Accuracy Sensor, converts the signal into a digital display on the LCD screen. The multi-level shock filtering function ensures weighing stability, the external calibrating mechanism guarantees accuracy, and the RS232 interface supports data transmission to external devices.
Applications
Laboratory, Industrial weighing, Jewelry weighing, Food processing, Medical weighing, Educational research
Steps
1. Balance on a smooth surface
2. Connect the Power Adapter or use the built-in battery
3. Wait for the self-test to complete after turning it on.
4. Select the weighing unit as required
5. Place items to be weighed on the pan
6. Read the weighing results on the display
7. Optional use of RS232 interface to transfer data
8. Clean the scale body and shut down after use
Notice
• Balance is placed on a horizontal stable surface
• Avoid use in environments where the temperature exceeds the range of 10 ° C -30 ° C
Periodic external calibrating to maintain accuracy
• Use a soft cloth when cleaning and avoid using corrosive cleaners
• Please use the original adapter when charging the built-in battery
• Avoid overloading, Capacity is 3000g
• Pay attention to shock and moisture protection during transportation and storage
