Overview

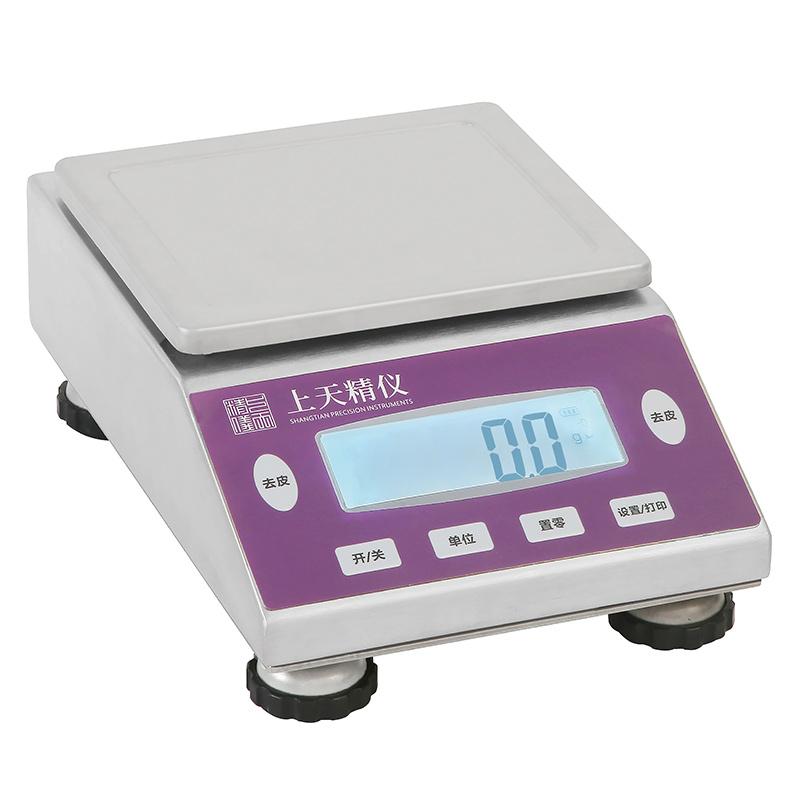

Shangtian Jingyi GL30001S Stainless Steel Application Balance is a High Accuracy Electronic Balance made of stainless steel 304 material, with stable and reliable weighing performance and clear LCD display. The product supports a variety of weighing units, has a built-in rechargeable battery, is suitable for long-term uninterrupted use, and can be equipped with an optional lower hook design to meet special application needs.
Features
1. A New Generation of High Accuracy Sensors, Providing Stable and Reliable Weighing Results
2. Backlit high definition LCD LCD display, weighing results are clearly displayed
3. The scale body is made of stainless steel 304, which is easy to clean and durable
4. Adjustable function of multi-stage shockproof filter
5. Various weighing units g/kg/ct/oz, etc
6. Built-in rechargeable battery, supports long-term uninterrupted use
7. Optional lower hook design to meet users' special application needs
8. Standard RS232 interface, optional PC-STWC function to transfer weighing data directly to open applications such as Excel
Principle
The Balance detects the weight signal through the High Accuracy Sensor, and after being processed by the internal circuit, the weighing result is clearly displayed on the LCD display. The multi-stage shock-proof filtering function can reduce external interference and ensure weighing stability and accuracy.
Applications
Laboratory, Industrial weighing, Jewelry weighing, Food processing, Pharmaceutical weighing
Steps
Step 1 Place Balance on a Smooth Table
2. Connect the Power Adapter or use the built-in battery
3. Turn it on and warm up and wait for the display screen to stabilize.
4. Place items to be weighed on the pan
5. Read the weighing results on the display
6. Use peel function for net weight measurement
7. Optional data transfer to Excel through RS232 interface
Notice
Do not use in a strong electromagnetic interference environment
• Avoid Capacity 3000g
• Keep the pan clean and wipe it regularly with a soft cloth
• Standard weight when using external calibrating
• operation temperature range is 10 ℃ -30 ℃
• Power Adapter input voltage is 110V-240V, 50Hz/60Hz
