Overview

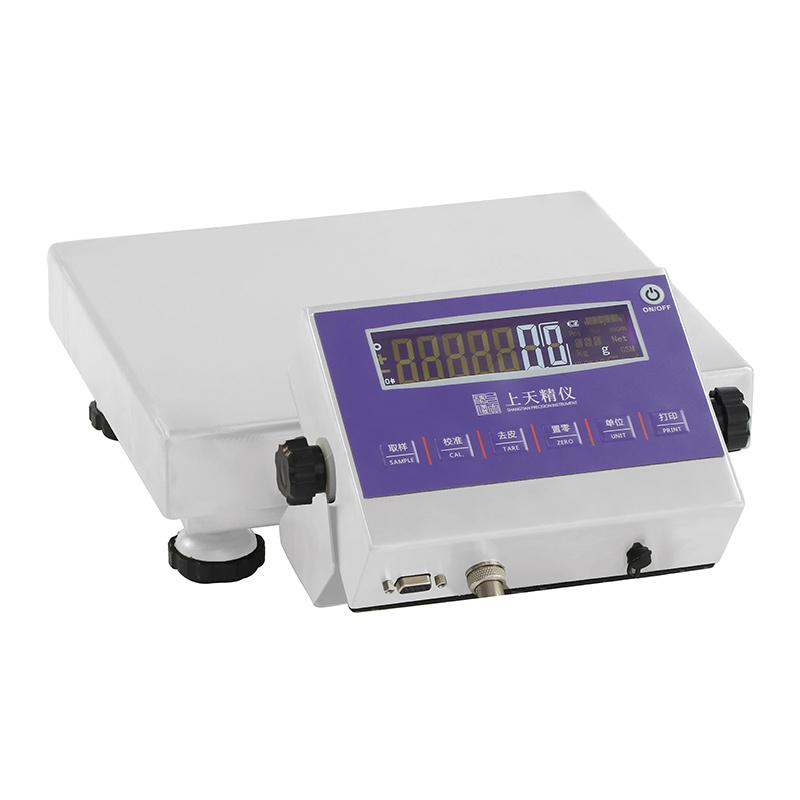

Shangtian Jingyi GL15KS Stainless Steel Application Balance is a High Accuracy weighing equipment with a maximum range of 15kg and a readability accuracy of 0.1g. It is made of stainless steel 304 material and is suitable for various weighing scenarios such as laboratories and industries.
Features
1. Adopt a new generation of High Accuracy Sensors to provide stable and reliable weighing results
2. Equipped with backlit high definition LCD screen, weighing results are clearly displayed
3. The scale body is made of stainless steel 304, which is easy to clean and durable
4. With adjustable function of multi-level shockproof filter
5. Support a variety of weighing units: g/kg/ct/oz, etc
6. Built-in rechargeable battery, supports long-term uninterrupted use
7. Standard RS232 interface, optional PC-STWC function to transfer weighing data directly to open applications such as Excel
8. Wide power supply range: 110V-240V, 50Hz/60Hz
9. Provide a wealth of optional functions: pole device, USB storage, lower hook, printer, second display screen, check alarm light, etc
Principle
The Balance senses the weight of the object through the High Accuracy Sensor, after multi-stage shock-proof filtering processing, converts the weighing signal into a digital signal, and clearly displays the weighing result through the backlit high definition LCD screen, and can realize data transmission through the RS232 interface.
Applications
Laboratory, Industrial weighing, mass testing, Jewelry weighing, Food processing, Pharmaceutical manufacturing
Steps
1. Place Balance on a Smooth Work Surface
2. Connect the Power Adapter or use the built-in battery
3. Turn on and warm up to a stable state
4. Choose the appropriate weighing unit according to your needs
5. Place items to be weighed
6. To calibrate, use the external calibrating function
7. Data can be transferred by connecting to a computer through the RS232 interface
8. Turn off and clean the pan after use
Notice
• Balance in a stable, vibration-free environment
• Operating Environment Temperature should be kept within 10~ 30 ℃
• Avoid use in humid, corrosive gas environments
• Please use a soft cloth to wipe when cleaning to avoid the use of corrosive cleaners
Periodic external calibrating to ensure weighing accuracy
• Disconnect the power supply when not in use for a long time
• Do not use beyond the maximum range of 15kg
• Please handle with care when transporting and moving to avoid violent vibration
