Overview

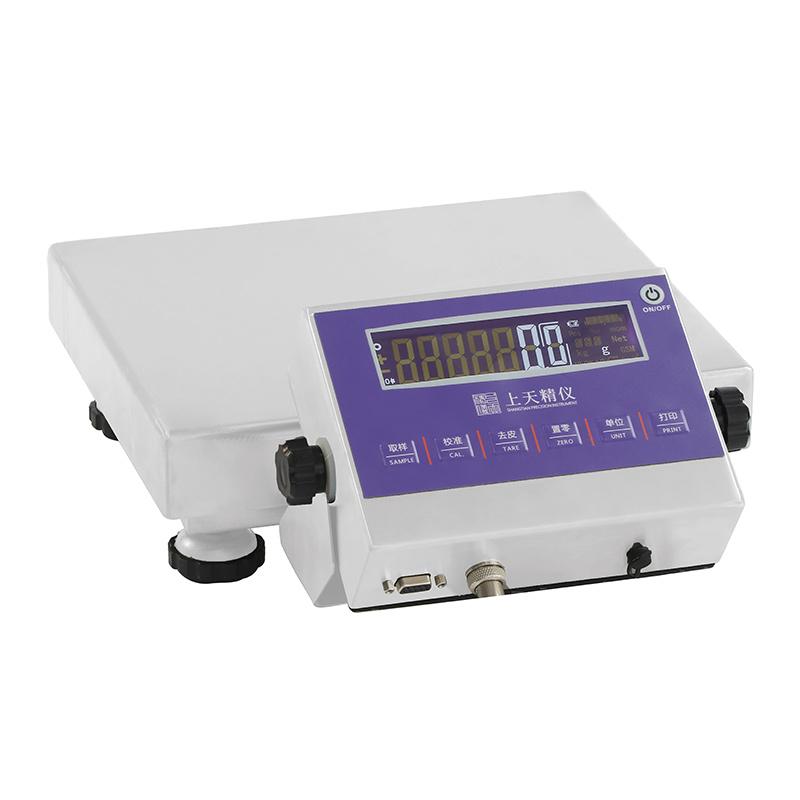

Shangtian Jingyi GL30KS Stainless Steel Application Balance is a High Accuracy weighing equipment with a maximum range of 30kg and a readability accuracy of 0.1g. It is made of stainless steel 304 material, which is easy to clean and durable, and is suitable for a variety of industrial weighing scenarios.
Features
1. New Generation High Accuracy Sensor Provides Stable and Reliable Weighing Results
2. Backlit high definition LCD screen, weighing results are clearly displayed
3. The scale body is made of stainless steel 304, which is easy to clean and durable
4. Adjustable function of multi-stage shockproof filter
5. Support for a variety of weighing units (g/kg/ct/oz, etc.)
6. Built-in rechargeable battery, supports long-term uninterrupted use
7. Standard RS232 interface, optional PC-STWC function to transfer weighing data directly to open applications such as Excel
8. Wide power supply range (110V-240V, 50Hz/60Hz)
9. Rich optional functions: pole device, USB storage, lower hook, printer, second display screen, check alarm light, etc
Principle
The Balance detects the weight signal through the High Accuracy Sensor, and after multi-stage shock-proof filtering, the weighing result is clearly displayed on the backlit high definition LCD screen. Support external calibrating function to ensure measurement accuracy, and data transmission can be realized through RS232 interface.
Steps
Step 1 Place Balance on a Smooth Table
2. Connect the Power Adapter or use the built-in battery
3. Turn on and warm up to a stable state
4. Select the weighing unit as required
5. Place items to be weighed on the pan
6. Read the weighing results on the display
7. For data transmission, connect the RS232 interface to an external device
8. Shut down after use
Notice
• Operating Environment Temperature should be within 10~ 30 ℃
• Ensure Balance is placed on a smooth and vibration-free countertop
Periodic external calibration to ensure measurement accuracy
• Wipe the stainless steel surface with a soft cloth when cleaning
• Avoid overloading, the maximum range is 30kg
• Power Adapter input voltage range is 110-240V
• It is recommended to disconnect the power supply when not in use for a long time
