Overview

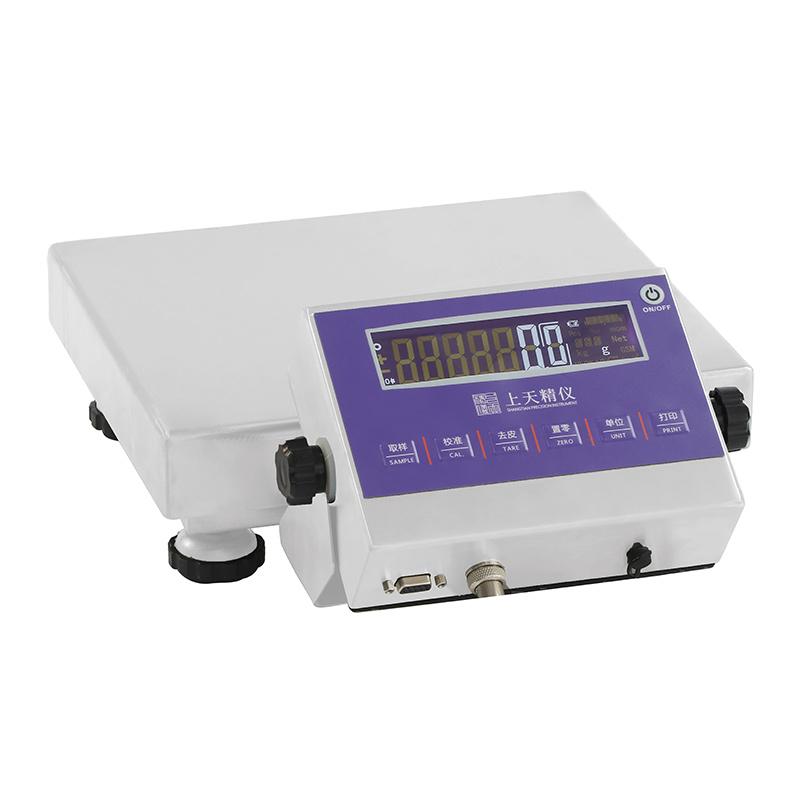

Balance is a High Accuracy weighing device, made of all stainless steel 304 material, with a maximum range of 50kg and 1g readability accuracy, suitable for a variety of industrial weighing scenarios.
Features
1. New Generation High Accuracy Sensor Provides Stable and Reliable Weighing Results
2. Backlit high definition LCD screen, weighing results are clearly displayed
3. The scale body is made of stainless steel 304, which is easy to clean and durable
4. Adjustable function of multi-stage shockproof filter
5. Support for a variety of weighing units: g/kg/ct/oz, etc
6. Built-in rechargeable battery, supports long-term uninterrupted use
7. Standard RS232 interface, optional PC-STWC function to transfer weighing data directly to open applications such as Excel
8. Wide power supply range: 110V-240V, 50Hz/60Hz
9. Rich optional functions: pole device, USB storage, lower hook, printer, second display screen, check alarm light, etc
Principle
The Balance collects weighted signals through High Accuracy Sensor, passes through multi-stage shock-proof filtering processing, clearly displays the weighing results on the backlit high definition LCD screen, and supports a variety of weighing unit conversion and data output.
Applications
Industrial weighing, laboratory measurement, production quality control, warehousing logistics, jewelry weighing, Food processing
Standards
External calibrated standard
Steps
Step 1 Place Balance on a Smooth Table
2. Connect the Power Adapter or use the built-in battery
3. Turn on and warm up to a stable state
4. Place items to be weighed on the pan
5. Read the weighing result displayed on the LCD screen
6. Optional connection to RS232 interface to transfer data to computer
Notice
• Operating Environment Temperature should be kept within 10~ 30 ℃
• Make sure the pan is clean and free of debris
• Avoid overloading, the maximum range is 50kg
Periodically calibrated to ensure accuracy
• Handle with care during transportation, gross weight 10.5kg
• Power Adapter input range is 110-240V, output is 12V 1A
