Overview

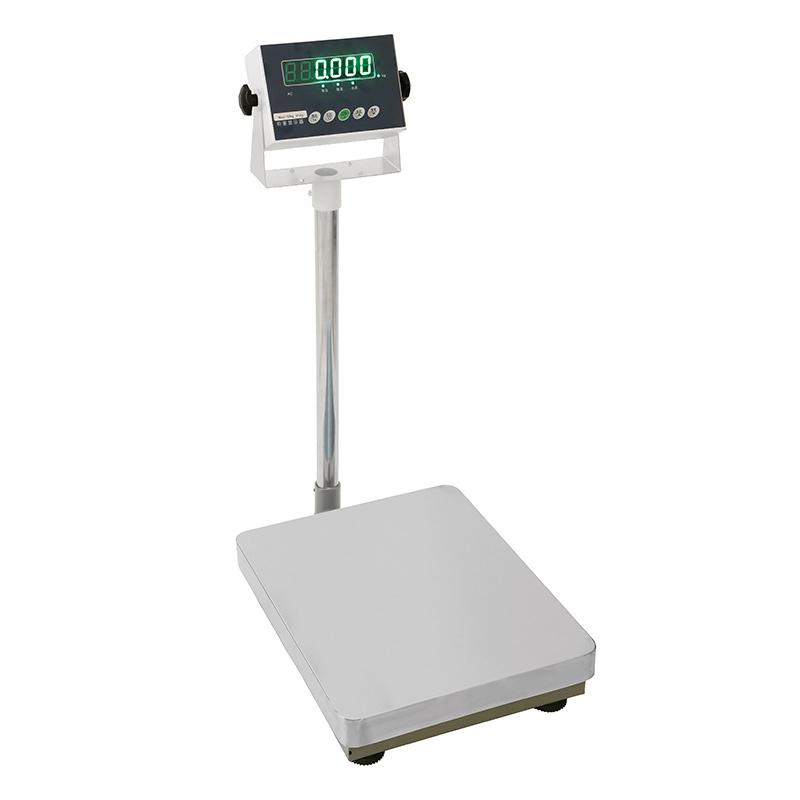

Balance is a High Accuracy weighing device made of stainless steel 304, with a maximum range of 60kg and a readability accuracy of 1g, suitable for a variety of industrial weighing scenarios.
Features
1. A New Generation of High Accuracy Sensors, Providing Stable and Reliable Weighing Results
2. Backlit high definition LCD screen, weighing results are clearly displayed
3. The scale body is made of stainless steel 304, which is easy to clean and durable
4. Adjustable function of multi-stage shockproof filter
5. A variety of weighing units include g/kg/ct/oz, etc
6. Built-in rechargeable battery, supports long-term uninterrupted use
7. Power adapter 110V-240V, 50Hz/60Hz
8. Optional functions include pole device, USB storage, lower hook, printer, second display screen, check alarm light, etc
Principle
The Balance detects the weight signal through the High Accuracy Sensor, and is clearly displayed on the backlit high definition LCD screen after multi-level shock-proof filtering, and supports external calibrating to ensure weighing accuracy.
Applications
Industrial weighing, laboratory measurement, production quality control, warehousing logistics, Food processing
Steps
1. Balance on a smooth surface
2. Connect the Power Adapter or use the built-in battery
3. Boot and wait for system initialization
4. Externally calibrated (if required)
5. Place items to be weighed in the pan
6. Read the weight data on the display
7. Use the peeling function (if required)
8. Shut down or switch to standby mode
Notice
• Operating Environment Temperature should be within 10~ 30 ℃
• Ensure Pan Size 400 * 500mm to place items
• Avoid overloading, the maximum range is 60kg
• Regularly clean stainless steel surfaces to maintain accuracy
• Use the original Power Adapter, input 110-240V 50/60Hz
• It is recommended to disconnect the power supply when not in use for a long time
• Pay attention to the net weight of the product 9.6kg and the gross weight 10.5kg when transporting
