Overview

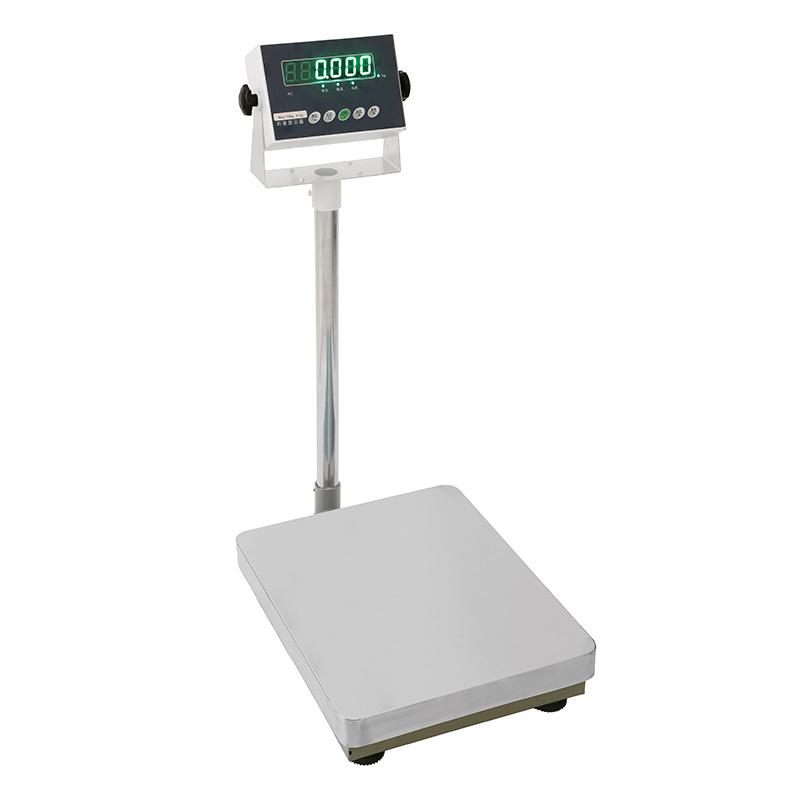

Balance is a High Accuracy weighing device made of stainless steel 304 for reliable weighing performance and durability. It is equipped with a backlit high definition LCD display, supports a variety of weighing units, and has a built-in rechargeable battery for a variety of industrial environments.
Features
1. A New Generation of High Accuracy Sensors, Providing Stable and Reliable Weighing Results
2. Backlit high definition LCD screen, weighing results are clearly displayed
3. The scale body is made of stainless steel 304, which is easy to clean and durable
4. Adjustable function of multi-stage shockproof filter
5. A variety of weighing units, including g/kg/ct/oz, etc
6. Built-in rechargeable battery, supports long-term uninterrupted use
7. Power supply compatible with 110V-240V, 50Hz/60Hz
8. Optional features are rich, including pole device, USB storage, lower hook, printer, second display screen, check alarm light, etc
Principle
GL100KS Balance detects the load weight with the High Accuracy Sensor, converting the signal to digital display on the LCD screen. Multi-level shock filtering reduces environment interference and ensures weighing accuracy. An external calibrating mechanism allows users to precisely calibrate according to standard weights.
Applications
Industrial weighing, laboratory measurement, production quality control, warehouse management, Food processing, Chemical industry
Steps
1. Place the Balance on a smooth surface, connect the Power Adapter or use the built-in battery
2. Turn on the power switch and wait for the system self-test to complete.
3. Select the weighing unit as needed (g/kg/ct/oz, etc.)
4. Place the item to be weighed on the pan and read the display result
5. Use peel function to remove container weight (optional)
6. Turn off the power after use and clean the scale body
Notice
• Operating Environment Temperature should be kept within 10~ 30 ℃
• Ensure Pan Size is 400 * 500mm to avoid overloading
Periodic external calibrating to maintain accuracy
• Use a soft cloth when cleaning to avoid corrosive chemicals
• Power Adapter input is 110-240V, output is 12V 0.5A, do not use mismatched power supply
• When not in use for a long time, it is recommended to disconnect the power supply and charge it regularly.
