Overview

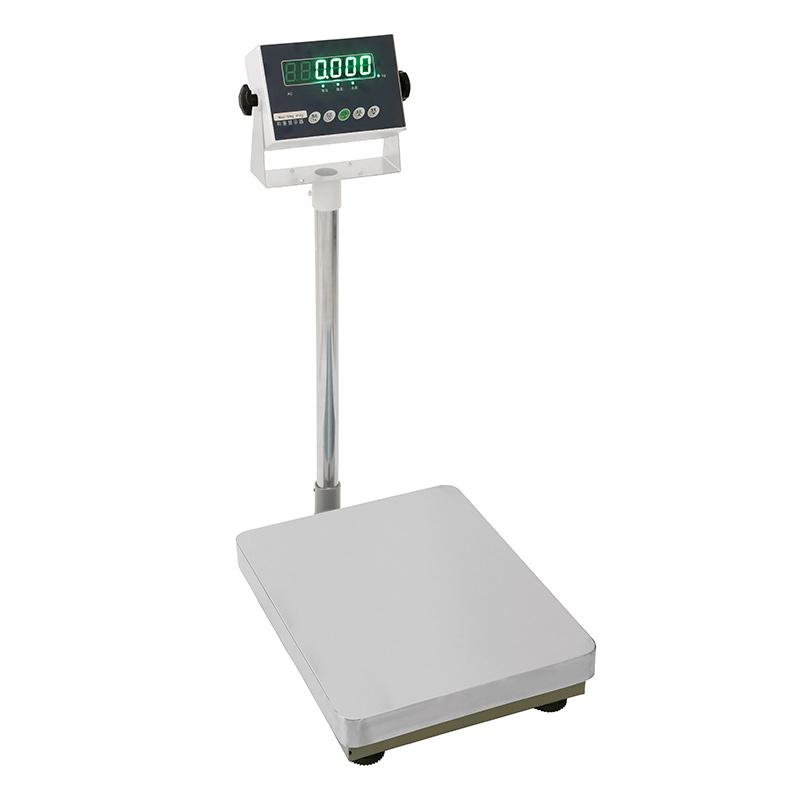

GL150KS stainless steel application Balance is a High Accuracy weighing equipment launched by Shangtian Jingyi brand. It is made of stainless steel 304 material and has a maximum range of 150kg and a readability accuracy of 10g. It is suitable for a variety of industrial weighing scenarios.
Features
1. A New Generation of High Accuracy Sensors, Providing Stable and Reliable Weighing Results
2. Backlit high definition LCD screen, weighing results are clearly displayed
3. The scale body is made of stainless steel 304, which is easy to clean and durable
4. Adjustable function of multi-stage shockproof filter
5. Support for a variety of weighing units: g/kg/ct/oz, etc
6. Built-in rechargeable battery, supports long-term uninterrupted use
7. Wide power supply range: 110V-240V, 50Hz/60Hz
8. Rich optional functions: pole device, USB storage, lower hook, printer, second display screen, check alarm light, etc
Principle
The Balance detects the weight signal through the High Accuracy Sensor, and clearly displays the weighing result on the backlit LCD screen after multi-level shock-proof filtering, and supports external calibrating to ensure measurement accuracy.
Applications
Industrial weighing, laboratory measurement, production quality control, warehouse logistics
Standards
The product information does not mention specific compliance standards
Steps
Step 1 Place Balance on a Smooth Table
2. Connect the Power Adapter or use the built-in battery
3. Turn it on and wait for the system self-test to complete.
4. Place items to be weighed on the pan
5. Read the weighing result displayed on the LCD screen
6. Use peel function for net weight measurement
7. Choose different weighing units according to your needs
Notice
• Operating Environment Temperature should be kept within 10~ 30 ℃
• Ensure Pan Size 400 * 500mm evenly placed items
Periodic external calibration to ensure measurement accuracy
• Wipe the stainless steel surface with a soft cloth when cleaning
• Avoid overloading, the maximum range is 150kg
• Power Adapter input voltage range is 110-240V
