Overview

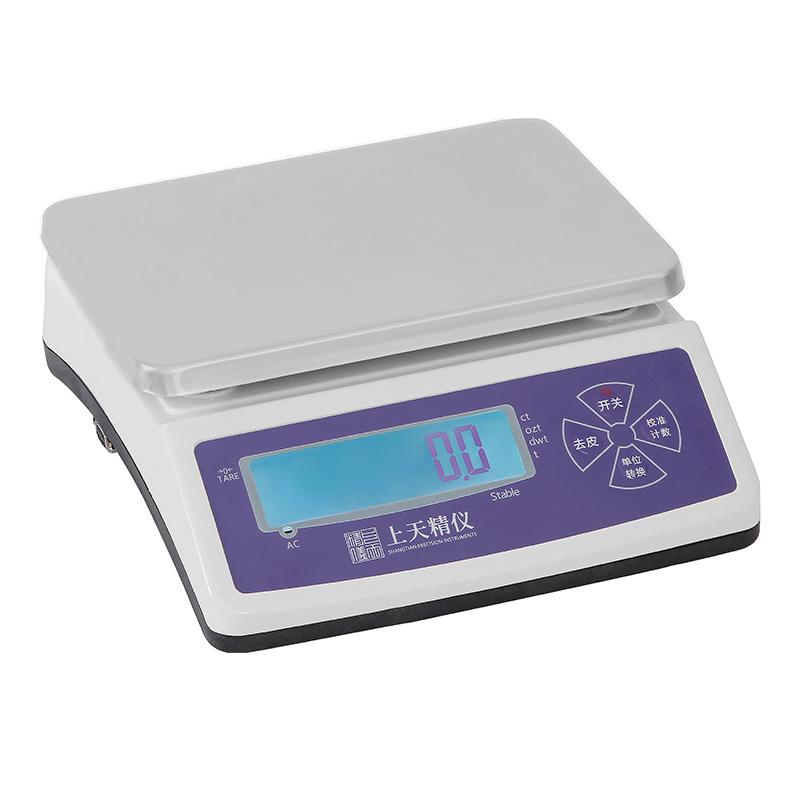

Shangtian Jingyi GL10K Large Range Application Balance is a High Accuracy Electronic Balance with a maximum range of 10kg and a readability accuracy of 0.1g. The product adopts a new generation of High Accuracy Sensor, equipped with a backlit high definition LCD screen and 304 stainless steel pan, which supports a variety of weighing units and long-term uninterrupted use.
Features
1. A New Generation of High Accuracy Sensors, Providing Stable and Reliable Weighing Results
2. Backlit high definition LCD screen, three windows display, weighing results are clearly displayed
3.304 stainless steel pan for easy cleaning and durability
4. Adjustable function of multi-stage shockproof filter
5. Support a variety of weighing units: g/kg/ct/oz, etc
6. Built-in rechargeable battery, supports long-term uninterrupted use
7. Standard RS232 interface, optional PC-STWC function to transfer weighing data directly to open applications such as Excel
8. Power Adapter supports 110V-240V, 50Hz/60Hz
9. Optional lower hook design function
Principle
The Balance detects the weight signal through the High Accuracy Sensor, and after multi-stage shock-proof filtering processing, the weighing result is clearly displayed on the backlit high definition LCD screen. It supports full-scale peeling function and can ensure weighing accuracy through external calibrating.
Applications
Laboratory, industrial weighing, mass testing, jewelry weighing, pharmaceuticals, Food processing, education and research
Steps
1. Place Balance on a Smooth Work Surface
2. Connect Power Adapter or use built-in battery power
3. Turn it on and warm up and wait for the display screen to stabilize.
4. Externally calibrated operation
5. Place items to be weighed on the pan
6. Read the weighing results on the display
7. Optional use of RS232 interface to transfer data to computer
Notice
• Operating Environment Temperature should be kept within 10~ 30 ℃
• Ensure Balance is placed on a smooth and vibration-free countertop
• Periodic external calibrating to ensure weighing accuracy
• Use a soft cloth when cleaning the pan to avoid using corrosive cleaners
• It is recommended to disconnect the power supply when not in use for a long time
• Avoid using more than 10kg of the maximum range
• Pay attention to handle with care during transportation to avoid violent vibration
