Overview

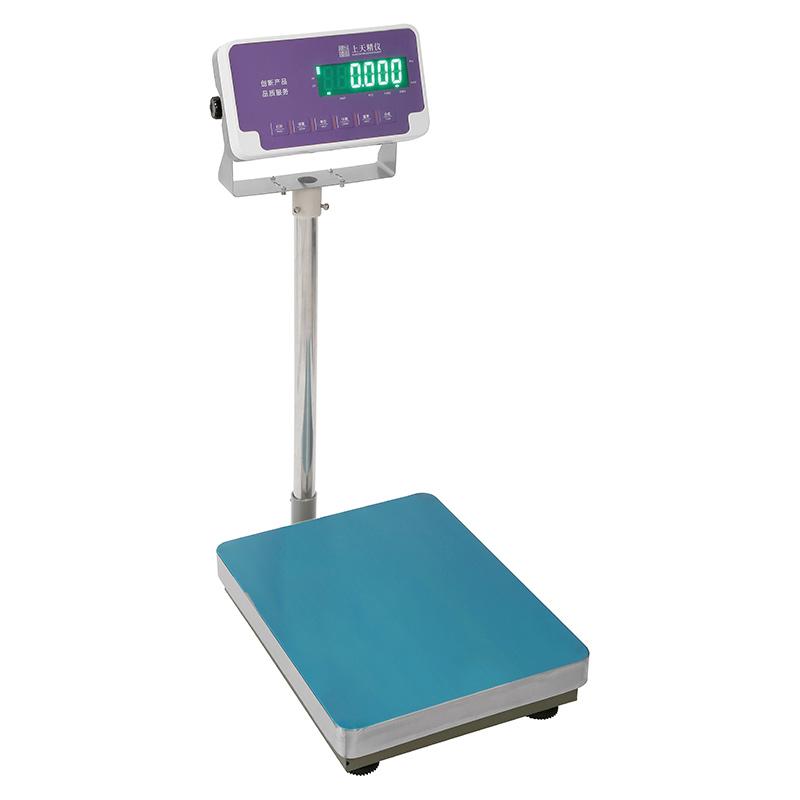

GL100K-1 Large Range Application Balance is a High Accuracy weighing device of Shangtian Jingyi brand. It adopts a new generation of Sensor technology to provide stable and reliable weighing results. The product has a maximum range of 100kg and 1g readability accuracy. It is equipped with stainless steel 304 pan and backlit high definition LCD screen. It supports a variety of weighing units and built-in upper and lower limit check alarm functions. It is suitable for accurate weighing needs in industries, laboratories and other fields.
Features
1. A New Generation of High Accuracy Sensors, Providing Stable and Reliable Weighing Results
2. Backlit high definition LCD screen, three window display (GLC counting series) weighing results are clearly displayed
3.The pan is made of stainless steel 304, which is easy to clean and durable
4. Built-in upper and lower limit weight check alarm function
5. Weighing reaction time < 2S
6. Various weighing units g/kg/ct/oz, etc
7. Built-in rechargeable battery, supports long-term uninterrupted use
8. Standard RS232 interface, optional PC-STWC function to transfer weighing data directly to open applications such as Excel
Principle
The Balance detects the weight of the object through the High Accuracy Sensor, converts the signal into digital display on the backlit LCD screen. It supports two modes of basic weighing and checking, uses the built-in circuit to process the weighing data, and realizes the data transmission function through the RS232 interface.
Applications
Industrial Weighing, Laboratory Testing, mass inspection, Production Measurement
Steps
1. Connect Power Adapter (input 110-240V 50/60Hz, output 12V 0.5A)
2. Boot Preheating, Ensure Ambient Temperature Within 10~ 30 ℃
3. Place the item to be weighed on the stainless steel pan
4. Select the desired weighing unit (g/kg/ct/oz, etc.)
5. Read the weighing results on the LCD screen
6. For data transmission, connect external devices through the RS232 interface
7. Shut down after use
Notice
• Ensure that the Operating Environment Temperature is within the range of 10~ 30 ℃
• Avoid overloading, the maximum range is 100kg
• Regularly clean stainless steel pans to maintain accuracy
• Check whether the input voltage of the Power Adapter matches before use (110-240V)
• It is recommended to disconnect the power supply when not in use for a long time
• When handling, pay attention to the net weight of the product 13kg and the gross weight 15kg.
