Overview

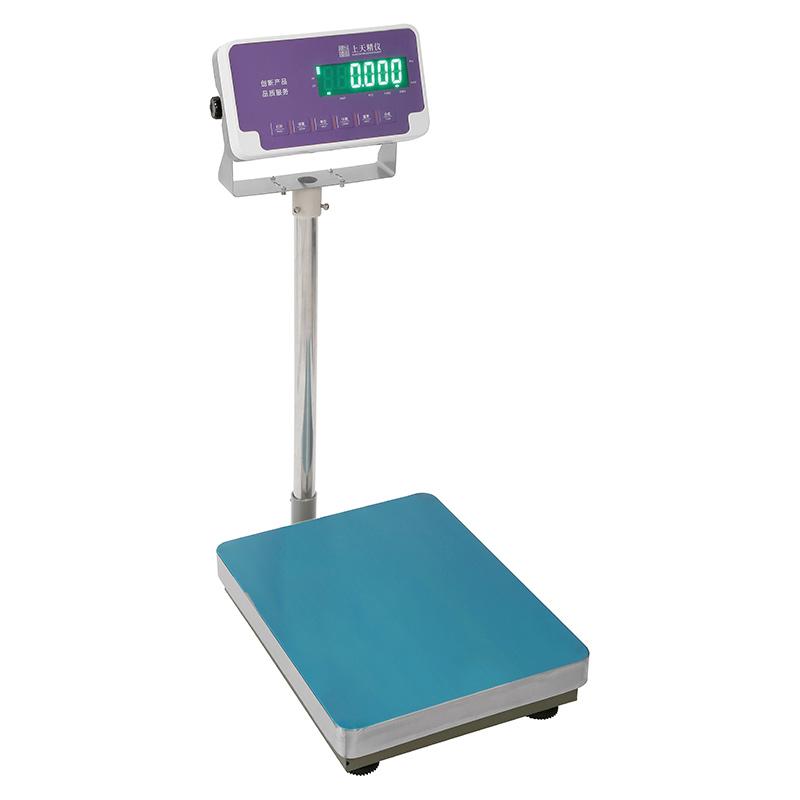

Balance is a High Accuracy weighing device with a maximum range of 60kg and readability accuracy of 5g, suitable for a variety of weighing scenarios. The product adopts stainless steel 304 pan, equipped with backlit high definition LCD screen, supports basic weighing and check mode, built-in rechargeable battery and RS232 interface to ensure a stable and reliable use experience.
Features
1. A New Generation of High Accuracy Sensors, Providing Stable and Reliable Weighing Results
2. Backlit high definition LCD screen, three windows display, clear weighing results
3.The pan is made of stainless steel 304, which is easy to clean and durable
4. Built-in upper and lower limit weight check alarm function
5. Weighing reaction time < 2S
6. Support a variety of weighing units: g/kg/ct/oz, etc
7. Built-in rechargeable battery, supports long-term uninterrupted use
8. Standard RS232 interface, optional PC-STWC function to transfer weighing data directly to open applications such as Excel
9. Power supply compatible with 110V-240V, 50Hz/60Hz
Principle
The Balance detects the load weight through the High Accuracy Sensor and converts the signal into a digital display on the LCD screen. The built-in weight check function can set the upper and lower limit alarms to ensure that the weighing results meet the requirements. Support external calibrating to ensure long-term accuracy and data transmission through the RS232 interface.
Applications
Industrial weighing, laboratory testing, quality control, material management
Steps
1. Place Balance in a smooth environment, connect Power Adapter or use built-in battery
2. Wait for the system self-test to complete after booting to ensure that the display screen is normal
3. Select the weighing unit (e.g. g, kg, etc.) as required.
4. Place the item to be weighed on the pan and read the stable weight value
5. When using the weight check function, set the upper and lower limits, and the system will automatically alarm
6. Connect external devices through RS232 interface, optional data transfer to Excel
7. Clean the pan after use, turn off or disconnect the power
Notice
• Operating Environment Temperature should be kept within 10~ 30 ℃
• Balance is placed smoothly to avoid vibration affecting accuracy
Periodic external calibration to maintain accuracy
• Use a soft cloth when cleaning to avoid corrosive chemicals
• Power Adapter input is 110-240V, output is 12V 0.5A, do not use beyond the range
• Follow safety regulations when charging the built-in battery to prevent overcharging
• Pay attention to moisture and collision prevention during transportation and storage, net weight 13kg, gross weight 15kg
