Overview

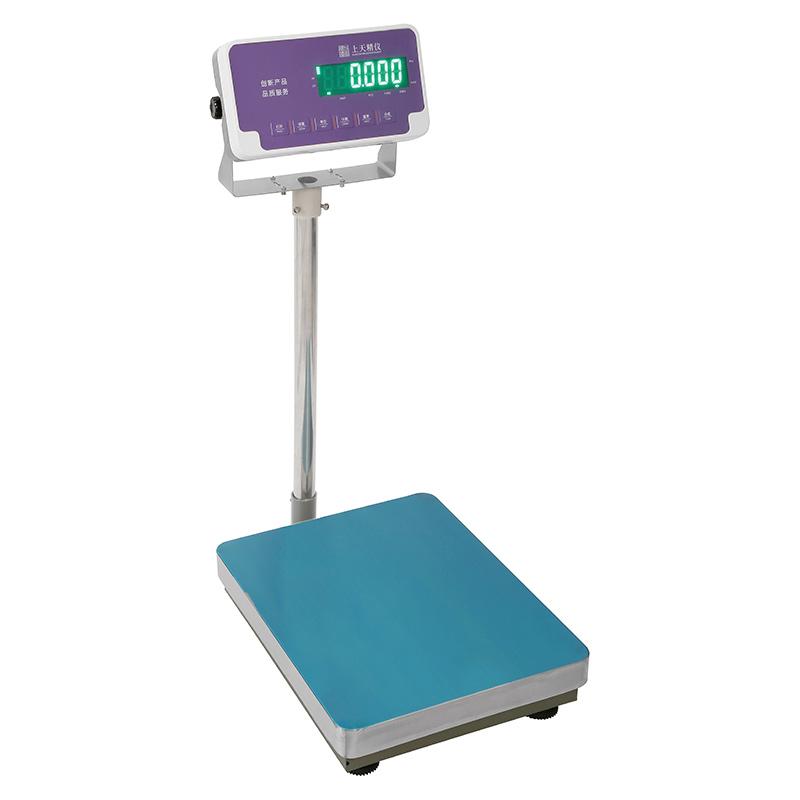

GL150K is a large-scale application Balance launched by the Shangtian Jingyi brand, with a maximum range of 150kg, suitable for industrial weighing and other scenarios. The product adopts a new generation of High Accuracy Sensor to provide stable and reliable weighing results, and is equipped with a backlit high definition LCD screen and a variety of practical functions.
Features
1. A New Generation of High Accuracy Sensors to Ensure Stable and Reliable Weighing
2. Backlit high definition LCD screen, three windows display, clear results
Stainless steel 304 pan, easy to clean and durable
4. Built-in upper and lower limit weight check alarm function
5. The weighing reaction time is less than 2 seconds
6. Support a variety of weighing units (g/kg/ct/oz, etc.)
7. Built-in rechargeable battery, supports long-term use
8. Standard RS232 interface, optional PC-STWC function to directly transfer data to Excel
Principle
The GL150K Balance detects the weight signal through the High Accuracy Sensor, converts it into an electrical signal, and is processed by the internal processor, and finally displays the weighing result on the LCD screen. Basic weighing and check modes are supported, and accuracy can be ensured by external calibrating.
Applications
Industrial weighing and checking applications
Steps
Connect the Power Adapter (input 110-240V, output 12V 0.5A) or use the built-in battery
2. Wait for system initialization after booting
3. Place the item to be weighed on the stainless steel pan
4. Read the weighing results on the LCD screen
5. Optional use of check-weight alarm function to set upper and lower limits
6. Optional connection to computer to transmit data through RS232 interface
Notice
• Operating Environment Temperature should be kept within 10~ 30 ℃
• Power frequency between 110V and 240V, 50Hz/60Hz
Periodic external calibrating to maintain accuracy
• Avoid overloading, the maximum range is 150kg
• Use mild detergent when cleaning to avoid corrosion of stainless steel pan
• It is recommended to disconnect the power supply when not in use for a long time
