Overview

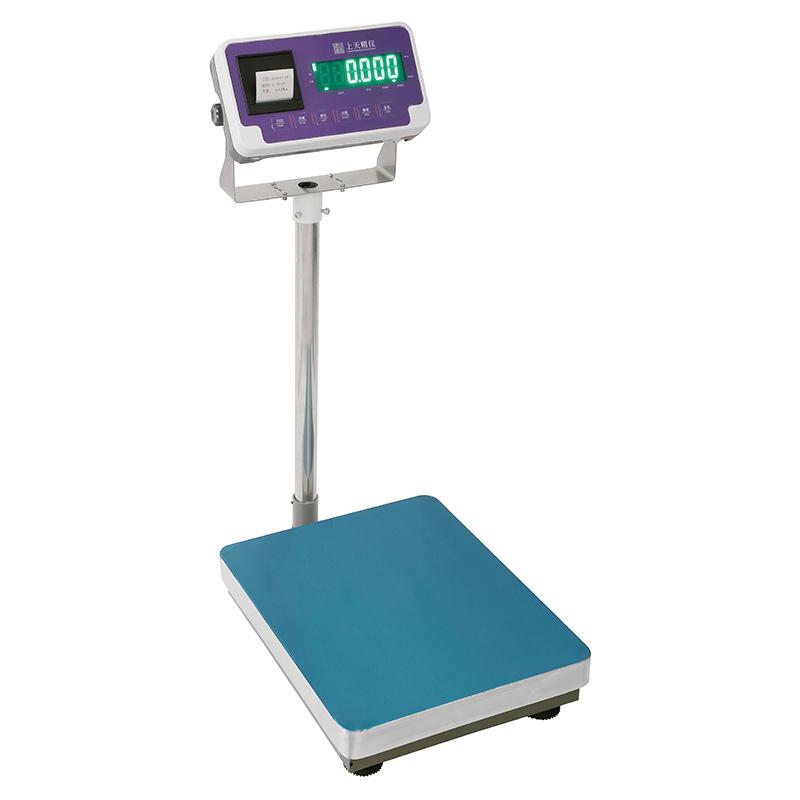

Shangtian Jingyi GL60KP-1 Large Range Application Balance is a High Accuracy weighing device with a maximum range of 60kg and a readability accuracy of 1g. It is suitable for various weighing scenarios such as industry and laboratory. Equipped with stainless steel 304 pan and backlit high definition LCD screen, it supports a variety of weighing units and built-in weight check alarm function.
Features
1. Adopt a new generation of High Accuracy Sensors to provide stable and reliable weighing results
2. Backlit high definition LCD screen, three windows display, clear weighing results
3.The pan is made of stainless steel 304, which is easy to clean and durable
4. Built-in upper and lower limit weight check alarm function
5. Weighing reaction time < 2 seconds
6. Support a variety of weighing units: g/kg/ct/oz, etc
7. Built-in rechargeable battery, supports long-term uninterrupted use
8. Standard RS232 interface, optional PC-STWC function to directly transfer data to Excel
Principle
The Balance detects the weight signal through the High Accuracy Sensor, converts it into a digital signal and processes it by the processor, and clearly displays the weighing result on the LCD screen. It supports basic weighing and check mode, uses external calibrate to ensure accuracy, and realizes data output through RS232 interface.
Applications
Industrial weighing, laboratory measurement, quality control, material weighing
Steps
1. Place the Balance in a smooth environment and connect the Power Adapter
2. Wait for the system self-test to complete after booting.
3. Use the external calibrate function to calibrate
4. Place the item to be weighed on the pan and read the display result
5. Optional use check check mode to set the upper and lower limit alarms
6. Connect external devices to transmit data through the RS232 interface
Notice
• Operating Environment Temperature should be kept within 10~ 30 ℃
Make sure the pan is clean and avoid contact with corrosive substances
• calibrating in a stable environment to avoid vibration interference
• Power Adapter input voltage is 110-240V, output is 12V 0.5A
• It is recommended to disconnect the power supply when not in use for a long time
