Overview

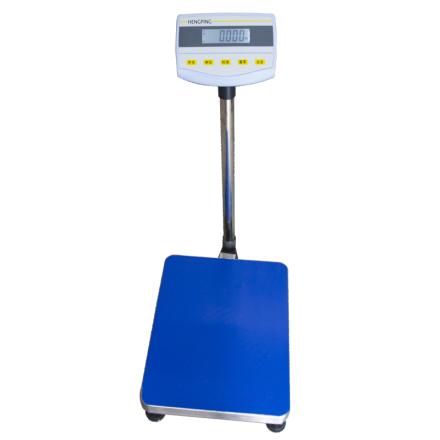

Balance is a High Accuracy weighing device with a maximum range of 100kg and readability accuracy of 1g. It is suitable for a variety of industrial weighing scenarios. The product adopts stainless steel 304 pan, supports basic weighing and check mode, and is equipped with RS232 interface and thermal printer output.
Features
1. A New Generation of High Accuracy Sensors, Providing Stable and Reliable Weighing Results
2. Backlit high definition LCD screen, three windows display, clear weighing results
Stainless steel 304 pan for easy cleaning and durability
4. Built-in upper and lower limit weight check alarm function
5. Weighing reaction time < 2S
6. Various weighing units: g/kg/ct/oz, etc
7. Built-in rechargeable battery, supports long-term uninterrupted use
8. Standard RS232 interface, optional PC-STWC function to transfer weighing data directly to Excel and other applications
Principle
The Balance senses the weight of the object through the High Accuracy Sensor and converts the signal into a digital display. The built-in weight check function can set upper and lower limits, and trigger an alarm when the weighing result exceeds the range. External calibrating is supported to ensure weighing accuracy.
Applications
Industrial Weighing, mass inspection, Material Measurement, Production Line Checking
Standards
The product information does not mention relevant standards
Steps
1. Place Balance on a Smooth Table
2. Connect Power Adapter (input 110-240V, output 12V 0.5A)
3. Boot Preheating, Ensure Ambient Temperature at 10~ 30 ℃
4. Externally calibrated
5. Place items to be weighed in a stainless steel pan
6. Read the LCD weighing result
7. Optional use of RS232 interface to connect to printer or PC to transfer data
Notice
• Balance on a smooth surface before use
• Ambient Temperature should be kept within 10~ 30 ℃
• Periodic external calibrating to ensure weighing accuracy
• Use a soft cloth to wipe the stainless steel pan when cleaning
• Avoid overloading, the maximum range is 100kg
• It is recommended to disconnect the power supply when not in use for a long time
