Overview

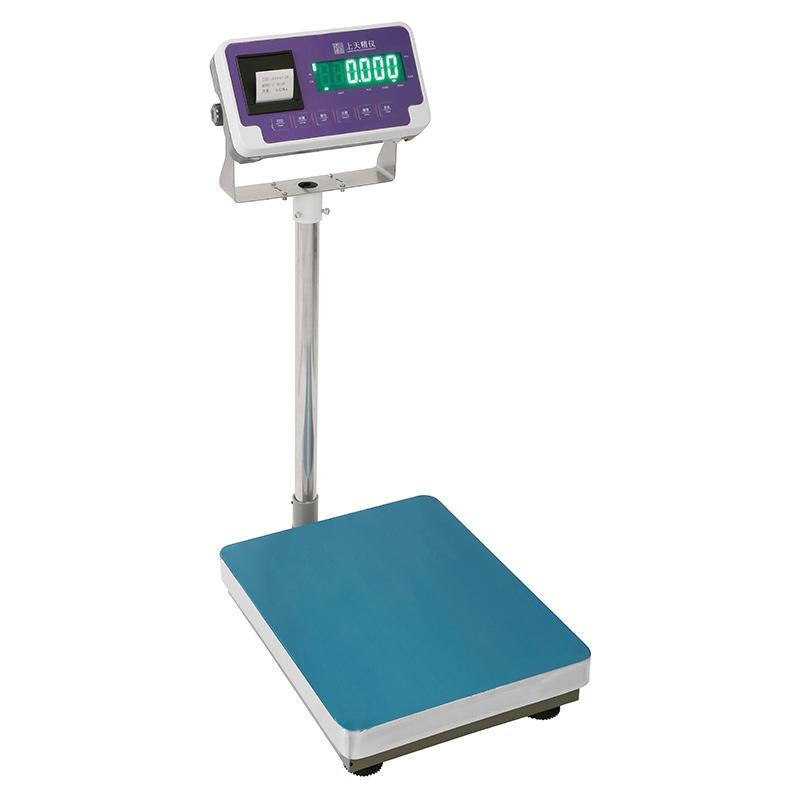

GL100KP Large Range Application Balance is a High Accuracy weighing device of Shangtian Jingyi brand, with a maximum range of 100kg, using a new generation of High Accuracy Sensor and backlit high definition LCD screen to provide stable and reliable weighing results, suitable for a variety of industrial occasions.
Features
1. A New Generation of High Accuracy Sensors, Providing Stable and Reliable Weighing Results
2. Backlit high definition LCD screen, three window display (GLC counting series), weighing results are clearly displayed
3.The pan is made of stainless steel 304, which is easy to clean and durable
4. Built-in upper and lower limit weight check alarm function
5. Weighing reaction time < 2S
6. Various weighing units g/kg/ct/oz, etc
7. Built-in rechargeable battery, supports long-term uninterrupted use
8. Standard RS232 interface, optional PC-STWC function to transfer weighing data directly to open applications such as Excel
9. Power supply: 110V-240V, 50Hz/60Hz
Principle
The Balance detects the weight signal through the High Accuracy Sensor, converts it into an electrical signal, and is processed by the internal processor. The weighing result is clearly displayed on the backlit LCD screen. It supports basic weighing and checking modes, and can realize data transmission through the RS232 interface or PC-STWC function.
Steps
Connect the Power Adapter (input 110-240V, output 12V 0.5A) or use the built-in battery
2. Wait for system initialization after booting
3. Place the item on the stainless steel pan (size 400 * 500mm)
4. Read the weighing result displayed on the LCD screen (support units such as g/kg/ct/oz)
5. Use the peeling function (full scale range)
6. Optional connection to RS232 interface or thermal printer output data
7. Turn off and clean the pan after use
Notice
• Operating Environment Temperature should be kept within 10~ 30 ℃
• Ensure that the Power Adapter input voltage is between 110-240V and the frequency is 50/60Hz
• Avoid overloading, the maximum range is 100kg
Periodically calibrated to ensure accuracy
• Use a soft cloth when cleaning the pan and avoid using corrosive cleaners
• It is recommended to disconnect the power supply when not in use for a long time
