Overview

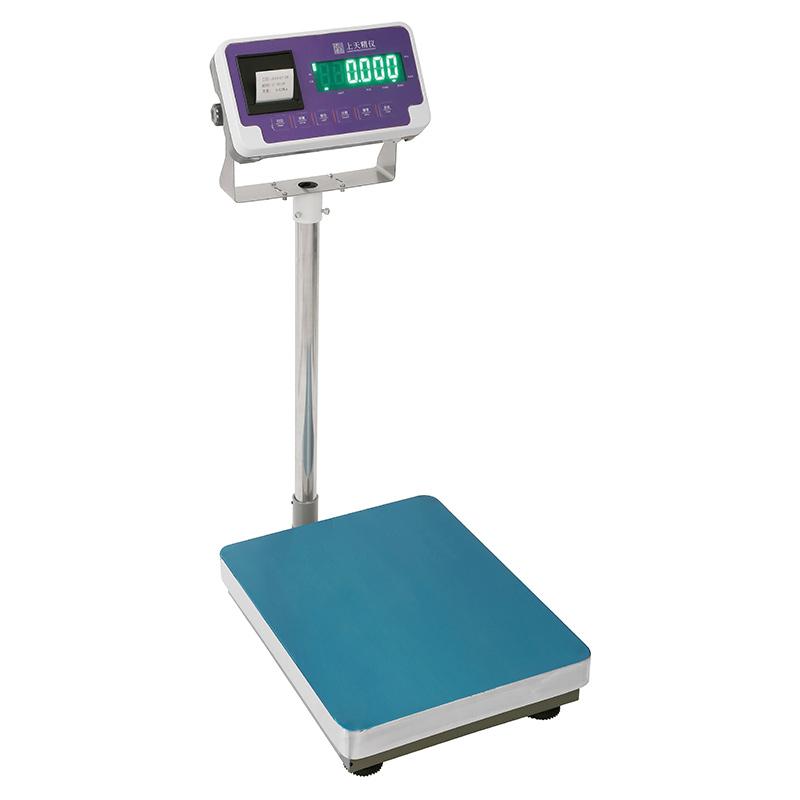

Shangtian Jingyi GL150KP Large Range Application Balance is a High Accuracy weighing device with a maximum range of 150kg and a readability accuracy of 10g. It is suitable for stable weighing needs in industrial, laboratory and other occasions. It adopts stainless steel 304 pan and is equipped with a backlit high definition LCD screen. It supports a variety of weighing units and built-in rechargeable batteries to ensure long-term reliable use.
Features
1. A New Generation of High Accuracy Sensors, Providing Stable and Reliable Weighing Results
2. Backlit high definition LCD screen, three windows display, clear weighing results
3.The pan is made of stainless steel 304, which is easy to clean and durable
4. Built-in upper and lower limit weight check alarm function
5. Weighing reaction time < 2S
6. Support a variety of weighing units: g/kg/ct/oz, etc
7. Built-in rechargeable battery, supports long-term uninterrupted use
8. Standard RS232 interface, optional PC-STWC function to transfer weighing data directly to Excel and other applications
Principle
The Balance detects the weight signal through the High Accuracy Sensor, converts it into an electrical signal, and displays it on the LCD screen. The built-in weight check function can set the upper and lower limits for alarm, supports external calibrating to ensure accuracy, and uses the RS232 interface to realize data transmission.
Applications
Industrial weighing, laboratory measurement, quality control, material weighing
Steps
1. Place Balance in a smooth environment, connect Power Adapter or use built-in battery
2. Wait for the system to initialize after booting to ensure that the pan is not loaded
3. Select the weighing unit (e.g. g, kg, etc.) as required.
4. Place the item to be weighed on the pan and read the display result after stabilization
5. Use peel function to remove container weight (optional)
6. Set the upper and lower limit check parameters to enable the alarm function (optional)
7. Connect external devices to transmit data through RS232 interface (optional)
Notice
• Operating Environment Temperature should be kept within 10~ 30 ℃
Balance is placed on a horizontal stable surface to avoid vibration interference
• Regularly clean the stainless steel pan to prevent dirt from affecting the accuracy
• When external calibrating, use standard weights to ensure accuracy
• When not in use for a long time, it is recommended to disconnect the power supply to prolong the battery life
• Avoid overloading, the maximum range is 150kg
• When data transmission, confirm that the RS232 interface connection is stable
