Overview

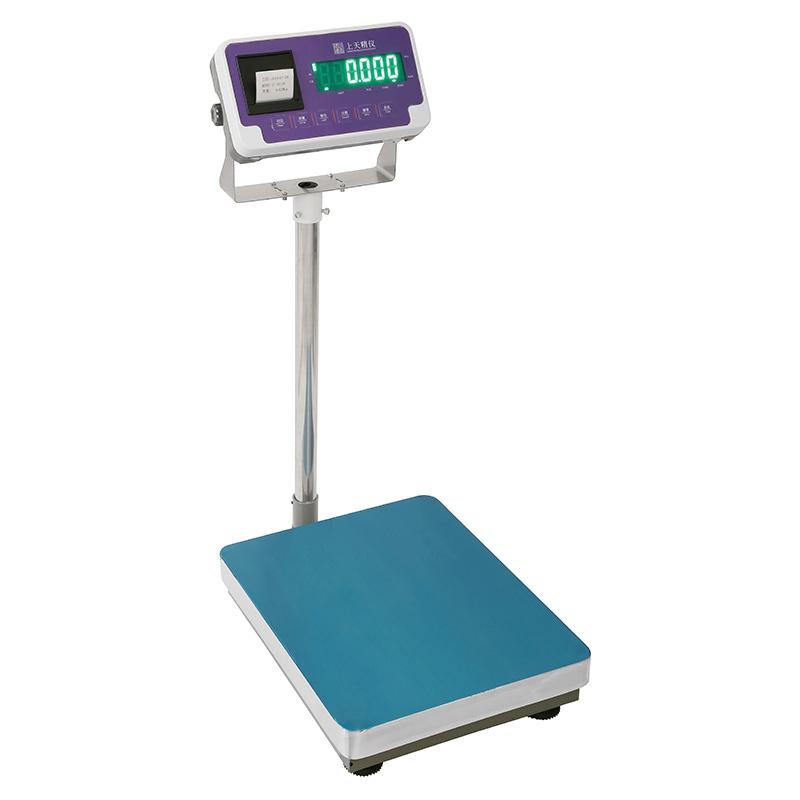

GL500KP is a large-scale application Balance launched by the Shangtian Jingyi brand. The maximum range is 500kg. It adopts High Accuracy Sensor to ensure stable and reliable weighing. The product is equipped with stainless steel 304 pan, supports a variety of weighing units and has built-in weight check and alarm function, which is suitable for industrial weighing scenarios.
Features
1. A New Generation of High Accuracy Sensors, Providing Stable and Reliable Weighing Results
2. Backlit high definition LCD screen, three window display (GLC counting series), weighing results are clearly displayed
3.The pan is made of stainless steel 304, which is easy to clean and durable
4. Built-in upper and lower limit weight check alarm function
5. Weighing reaction time < 2S
6. Support a variety of weighing units: g/kg/ct/oz, etc
7. Built-in rechargeable battery, supports long-term uninterrupted use
8. Standard RS232 interface, optional PC-STWC function to transfer weighing data directly to open applications such as Excel
9. Power supply compatible with 110V-240V, 50Hz/60Hz
Principle
The product detects the weight signal through the High Accuracy Sensor, and displays the result on the LCD screen after internal processing. Support basic weighing and check mode, use external calibrating to ensure accuracy, and realize data output through RS232 interface.
Applications
Industrial Weighing, Production Inspection Weight, Logistics Measurement
Steps
Connect the Power Adapter (input 110-240V, output 12V 0.5A) or use the built-in battery
2. Select the weighing unit (g/kg/ct/oz, etc.) after booting.
3. Place the sample in a stainless steel pan for weighing
4. If you need to check the weight, set the upper and lower limit alarm values
5. Connect external devices to transmit data through the RS232 interface
Notice
• Operating Environment Temperature should be kept within 10~ 30 ℃
• calibrating needs to be done through external calibrating function
• Avoid overloading, the maximum range is 500kg
Maintain the stainless steel surface using proper methods when cleaning the pan
• Power Adapter must match the specified voltage range
