Overview

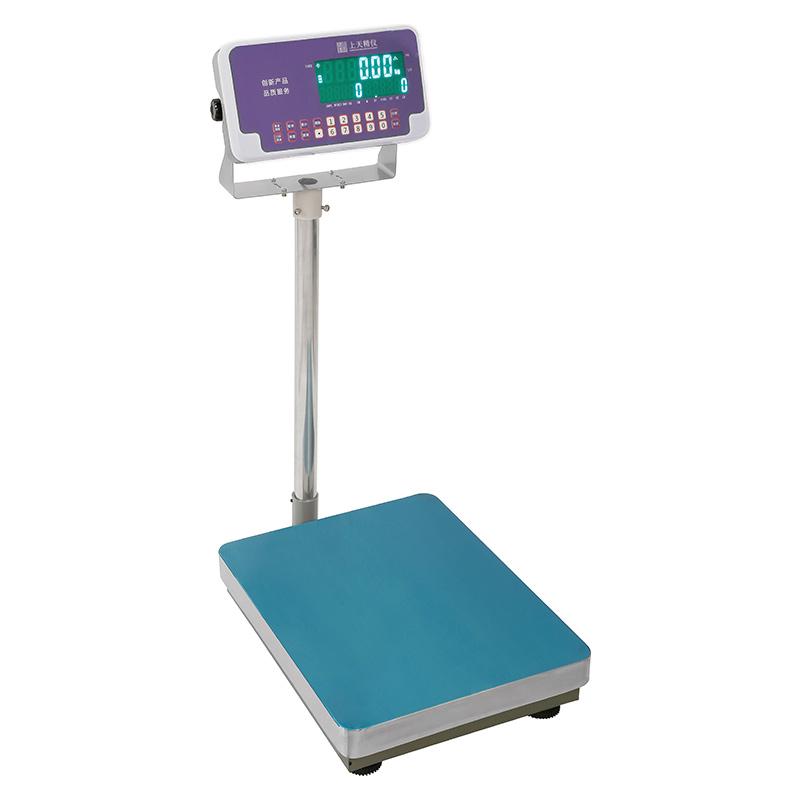

Balance is a High Accuracy weighing device with a maximum range of 100kg, using a new generation of Sensor technology, equipped with stainless steel pan and backlit high definition LCD screen, supports basic weighing, checking and counting and other weighing modes, suitable for accurate weighing needs in industries, laboratories and other fields.
Features
1. Adopt a new generation of High Accuracy Sensors to provide stable and reliable weighing results
2. Backlit high definition LCD screen, three windows display, clear weighing results
3.The pan is made of stainless steel 304, which is easy to clean and durable
4. Built-in upper and lower limit weight check alarm function
5. Weighing reaction time < 2 seconds
6. Support a variety of weighing units: g/kg/ct/oz, etc
7. Built-in rechargeable battery, supports long-term uninterrupted use
8. Standard RS232 interface, optional PC-STWC function to transfer weighing data directly to Excel and other applications
Principle
The Balance detects the weight of the object through the High Accuracy Sensor, converts the signal into a digital display on the LCD screen, supports basic weighing, checking and counting modes, ensures accuracy through external calibrating, and can set the upper and lower limits for alarm.
Applications
Industrial weighing, laboratory measurement, mass inspection, production counting
Steps
1. Balance in a stable environment
2. Connect the Power Adapter (input 110-240V, output 12V 0.5A) or use the built-in battery
3. Select the desired weighing mode after booting (basic weighing, checking or counting)
4. Place the object to be weighed on the stainless steel pan
5. Read the weighing result displayed on the LCD screen
6. For data transmission, connect external devices through the RS232 interface
Notice
• Operating Environment Temperature should be kept within 10~ 30 ℃
• Ensure that the pan is clean and avoid corrosive substances from contacting the stainless steel surface
• Periodic external calibrating to ensure weighing accuracy
• Avoid overloading, the maximum range is 100kg
• It is recommended to disconnect the power supply when not in use for a long time
• When handling, pay attention to the net weight of the equipment 13kg, and handle it with care
