Overview

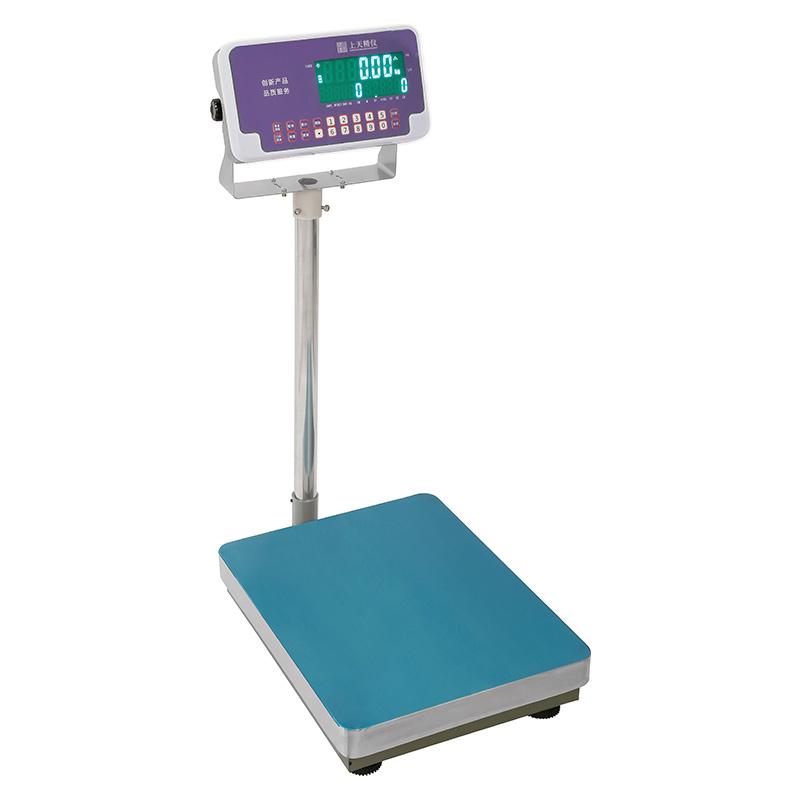

Balance is a High Accuracy weighing device with a maximum range of 60kg. It uses a new generation of Sensor technology to ensure stable and reliable weighing. It is equipped with a stainless steel pan and a backlit high definition LCD screen. It supports a variety of weighing modes and units. It is suitable for industrial and laboratory environments.
Features
1. A New Generation of High Accuracy Sensors, Providing Stable and Reliable Weighing Results
2. Backlit high definition LCD screen, three windows display, clear weighing results
3.The pan is made of stainless steel 304, which is easy to clean and durable
4. Built-in upper and lower limit weight check alarm function
5. Weighing reaction time < 2 seconds
6. Support a variety of weighing units: g/kg/ct/oz, etc
7. Built-in rechargeable battery, supports long-term uninterrupted use
8. Standard RS232 interface, optional PC-STWC function to transfer weighing data directly to Excel and other applications
9. Power supply compatible with 110V-240V, 50Hz/60Hz
Principle
The Balance is based on High Accuracy Sensor technology, which senses the weight of the object and converts it into an electrical signal, and displays the result on the LCD screen after internal processing; supports basic weighing, checking and counting modes, uses external calibrating to ensure accuracy, and realizes data output through the RS232 interface.
Applications
Industrial weighing, laboratory measurement, quality control, material counting
Steps
1. Place Balance on a Stable Horizontal Surface
2. Connect the Power Adapter or use the built-in battery
3. Wait for the initialization to complete after booting.
4. Select the weighing mode as required (basic weighing, checking or counting)
5. Place items to be weighed on the pan
6. Read the weighing results on the display
7. Optional use of RS232 interface to transfer data to external devices
Notice
• Operating Environment Temperature should be kept within 10~ 30 ℃
Make sure the pan is clean and avoid contact with corrosive substances
Periodic external calibrating to maintain accuracy
• Avoid overloading, the maximum range is 60kg
• Power Adapter input voltage range is 110-240V, output is 12V 0.5A
• Pay attention to net weight 13kg and gross weight 15kg during transportation and storage to prevent collisions
