Overview

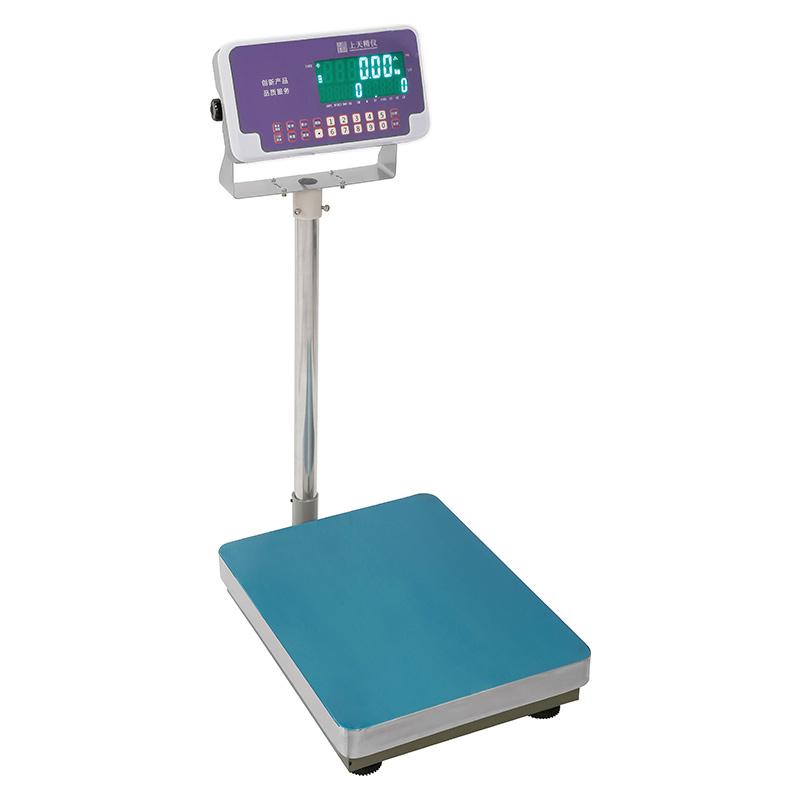

Balance is a High Accuracy weighing device with a maximum range of 300kg. It uses a new generation of Sensor technology to ensure stable and reliable weighing. It is equipped with a backlit high definition LCD screen and a variety of weighing modes, suitable for industrial and laboratory environments.
Features
1. A New Generation of High Accuracy Sensors, Providing Stable and Reliable Weighing Results
2. Backlit high definition LCD screen, three windows display, weighing results are clearly displayed
3.The pan is made of stainless steel 304, which is easy to clean and durable
4. Built-in upper and lower limit weight check alarm function
5. Weighing reaction time < 2S
6. Various weighing units g/kg/ct/oz, etc
7. Built-in rechargeable battery, supports long-term uninterrupted use
8. Standard RS232 interface, optional PC-STWC function to transfer weighing data directly to open applications such as Excel
9. Power supply: 110V-240V, 50Hz/60Hz
Principle
The Balance detects the weight signal through the High Accuracy Sensor, displays the result on the LCD screen after internal processing, supports basic weighing, checking and counting modes, can ensure accuracy through external calibrating, and realizes data transmission through the RS232 interface.
Applications
Industrial weighing, laboratory measurement, mass inspection, production counting
Steps
1. Connect the Power Adapter or use the built-in battery
2. Boot and warm up to a stable state
3. Place items to be weighed on the pan
4. Read the LCD display result
5. Select the corresponding mode when using the checkweight or counting function
6. Transfer data to external devices through the RS232 interface
Notice
• Operating Environment Temperature should be kept within 10~ 30 ℃
• Avoid overloading, the maximum range is 300kg
Periodically calibrated to ensure accuracy
• Use a soft fabric when cleaning the pan to avoid scratching the surface
• It is recommended to disconnect the power supply when not in use for a long time
• Handle with care when transporting and moving to avoid violent vibration
