Overview

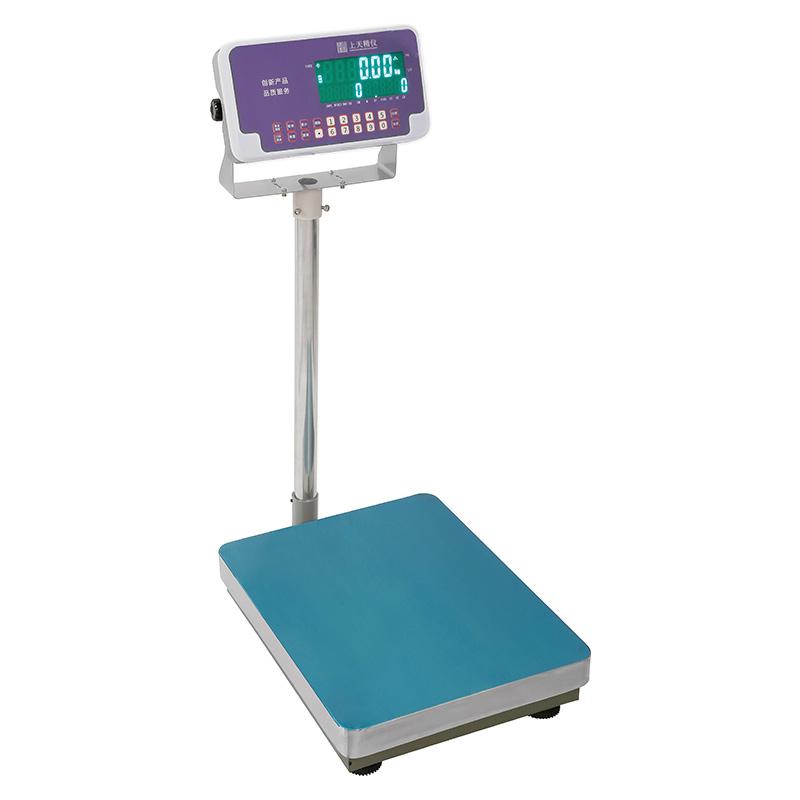

Shangtian Jingyi GLC500K Large Range Application Balance is a High Accuracy weighing device with a maximum range of 500kg and a new generation of Sensor to ensure stability and reliability. Equipped with backlit high definition LCD screen and three window display, it supports multiple weighing modes, built-in weight check alarm and rechargeable battery, suitable for long-term weighing needs in industrial and other fields.
Features
1. A New Generation of High Accuracy Sensors, Providing Stable and Reliable Weighing Results
2. Backlit high definition LCD screen, three windows display, clear weighing results
3.The pan is made of stainless steel 304, which is easy to clean and durable
4. Built-in upper and lower limit weight check alarm function
5. Weighing reaction time < 2 seconds
6. Support a variety of weighing units, including g, kg, ct, oz, etc
7. Built-in rechargeable battery, supports long-term uninterrupted use
8. Standard RS232 interface, optional PC-STWC function to transfer weighing data directly to Excel and other applications
Principle
The GLC500K Balance detects the load weight through the High Accuracy Sensor, converts the signal into a digital display on the LCD screen. The built-in weight check function can set the upper and lower limits for alarm, supports external calibrating to ensure accuracy, and realizes data transmission through the RS232 interface.
Applications
Industrial weighing, production inspection weight, material counting, laboratory applications
Standards
Externally calibrated
Steps
1. Place Balance in a smooth environment, connect Power Adapter or use built-in battery
2. After booting, select the weighing mode as needed (basic weighing, checking or counting)
3. Place the sample on the pan for weighing and observe the LCD display result
4. Use peeling function to remove container weight
5. Connect external devices to transmit data through the RS232 interface
6. Clean the pan after shutdown and store it properly
Notice
• Operating Environment Temperature should be kept within 10~ 30 ℃
Make sure the pan is clean and avoid contact with corrosive substances
Periodic external calibrating to maintain accuracy
• Avoid overloading, the maximum range is 500kg
• Power Adapter input voltage range is 110-240V, pay attention to match local standards
• When not in use for a long time, it is recommended to disconnect the power supply and charge it regularly.
