Overview

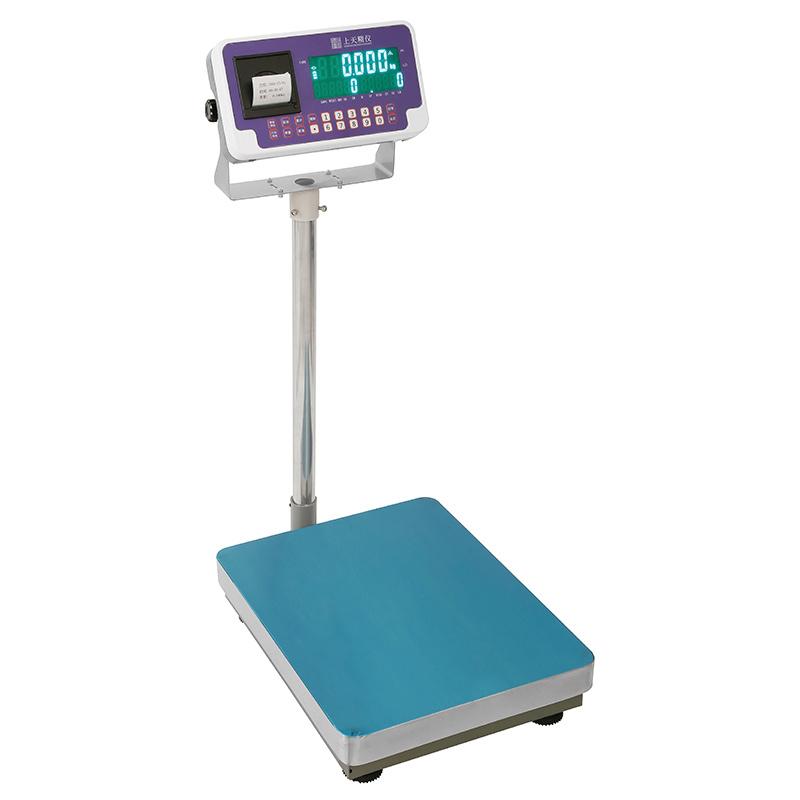

Balance is a High Accuracy weighing device with a maximum range of 60kg. It adopts a new generation of Sensor and backlit high definition LCD screen to support various modes such as basic weighing, checking and counting. It is suitable for accurate weighing needs in industries, laboratories and other fields.
Features
1. A New Generation of High Accuracy Sensors, Providing Stable and Reliable Weighing Results
2. Backlit high definition LCD screen, three windows display, clear weighing results
3.The pan is made of stainless steel 304, which is easy to clean and durable
4. Built-in upper and lower limit weight check alarm function
5. Weighing reaction time < 2 seconds
6. Various weighing units: g/kg/ct/oz, etc
7. Built-in rechargeable battery, supports long-term uninterrupted use
8. Standard RS232 interface, optional PC-STWC function to transfer weighing data directly to Excel and other applications
Principle
The Balance detects weight signals through the High Accuracy Sensor, displays the results on the LCD screen after internal processing, supports external calibrating to ensure accuracy, and has built-in weight checking and counting functions to meet diverse weighing needs.
Applications
Industrial weighing, laboratory measurement, mass inspection, production process control
Steps
1. Place Balance on a smooth surface and power on
2. Wait for the system self-test to complete after booting.
3. Select the weighing mode as required (basic weighing, checking or counting)
4. Place items to be weighed on the pan
5. Read the weighing results on the display
6. Use peeling function to deduct container weight
7. Export data through RS232 interface or PC-STWC function
Notice
• Operating Environment Temperature should be kept within 10~ 30 ℃
• Ensure that the pan is clean and drying to avoid contact with corrosive substances
• External calibrated before weighing to ensure accuracy
• Avoid overload use, the maximum range does not exceed 60kg
• It is recommended to disconnect the power supply when not in use for a long time
• Pay attention to handle with care when handling to avoid violent vibration
