Overview

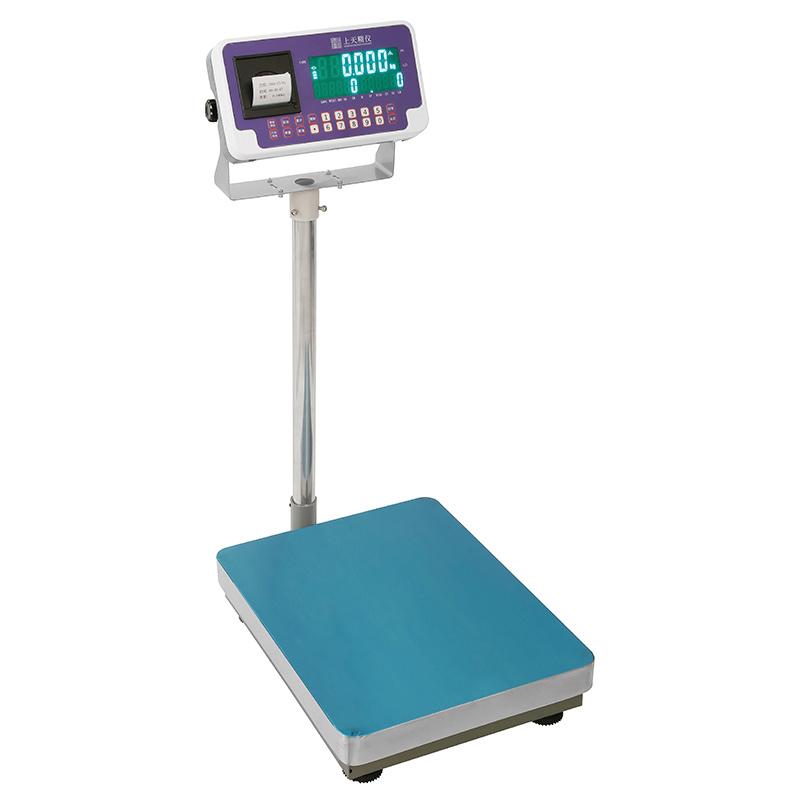

Shangtian Jingyi GLC150KP Large Range Application Balance is a High Accuracy weighing device with a maximum range of 150kg. It adopts a new generation of Sensor to ensure stable and reliable weighing. Equipped with backlit high definition LCD screen and a variety of weighing modes, it is suitable for industrial, laboratory and other scenarios.
Features
1. A New Generation of High Accuracy Sensors, Providing Stable and Reliable Weighing Results
2. Backlit high definition LCD screen, three window display (GLC counting series), weighing results are clearly displayed
3.The pan is made of stainless steel 304, which is easy to clean and durable
4. Built-in upper and lower limit weight check alarm function
5. Weighing reaction time < 2S
6. Various weighing units g/kg/ct/oz, etc
7. Built-in rechargeable battery, supports long-term uninterrupted use
8. Standard RS232 interface, optional PC-STWC function to transfer weighing data directly to open applications such as Excel
9. Power supply: 110V-240V, 50Hz/60Hz
Principle
The Balance is based on High Accuracy Sensor technology, which converts load changes into electrical signals and displays the weighing results on the LCD screen after internal processing. Basic weighing, check and count modes are supported, and accuracy is ensured with external calibrating.
Applications
Industrial weighing, laboratory measurement, mass inspection, production inspection, inventory management
Standards
Externally calibrated
Steps
1. Place Balance on Smooth Surface and Connect Power
2. Boot Preheating, Ensure Ambient Temperature at 10~ 30 ℃
3. Use the external calibrate function to calibrate
4. Place the sample for weighing, and choose the basic weighing, checking or counting mode
5. Transfer data through RS232 interface or PC-STWC function
6. Clean the pan and shut down after use
Notice
• Ensure that the Operating Environment Temperature is within the range of 10~ 30 ℃
• Externally calibrated for accuracy before weighing
• Avoid overloading, the maximum range is 150kg
• Use a soft cloth to wipe the stainless steel pan when cleaning
• Power Adapter input is 110-240V, output is 12V 0.5A, need to match
• It is recommended to disconnect the power supply when not in use for a long time
