Overview

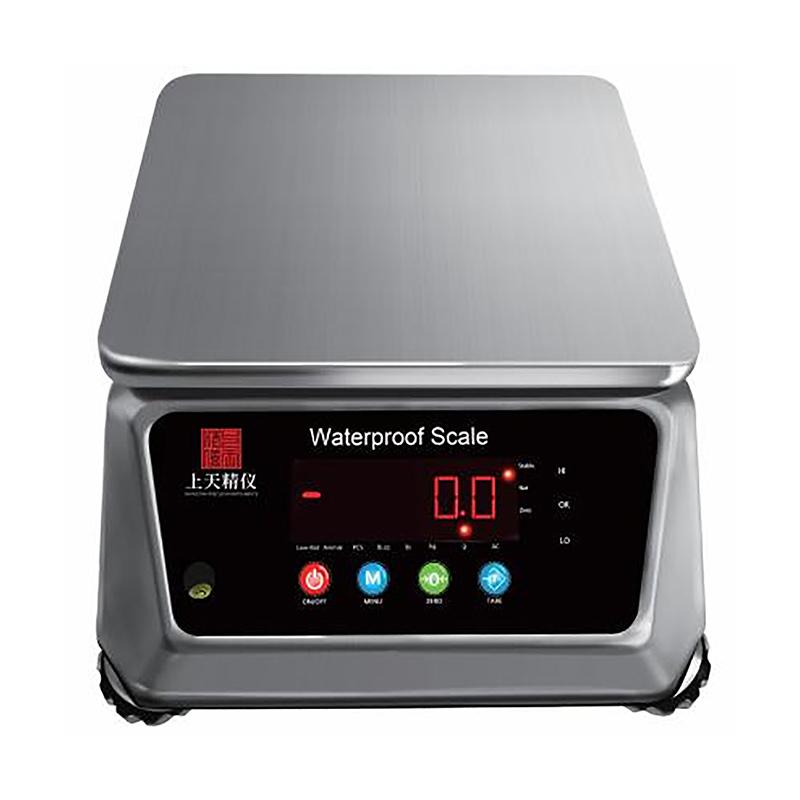

GLF3K Large Range Application Balance is a High Accuracy weighing device launched by Shangtian Jingyi brand, with a maximum range of 3kg and readability accuracy of 0.1g. It adopts a new generation of High Accuracy Sensor and IP68 Protection Rating design, suitable for various industrial weighing scenarios.
Features
1. New Generation High Accuracy Sensor Provides Stable and Reliable Weighing Results
2. High luminance red LED front and rear double-sided display to meet the needs of dim environment and double person operation
3. IP68 Protection Rating, the whole equipment adopts self-drainage structure design
4. Stainless steel double waterproof pan design
5. Built-in upper and lower limit weight check alarm function and hidden power cord design
6. Front horizontal bubble adjustment, simple and intuitive operation
7. Weighing unit g/kg optional
8. Built-in rechargeable battery, supports long-term uninterrupted use
9. Optional RS232 interface (waterproof type) and Bluetooth function
Principle
The Balance detects the weight of the measured object through the High Accuracy Sensor, converts the weight signal into an electrical signal, and displays the weighing result on the LED display after internal processing. The built-in upper and lower limit weight check function can automatically determine whether the weight is within the set range and issue an alarm.
Applications
Industrial weighing, laboratory measurement, production testing, quality control
Standards
IP68 protection class standard
Steps
1. Place the Balance on a stable countertop and adjust it to a horizontal state through the front horizontal bubble
2. Power on or use built-in battery power
3. Select the desired weighing unit (g or kg) after booting.
4. Place the test item on the pan for weighing
5. Set the upper and lower limit check-weight alarm values as needed
6. Read the weighing results on the display
7. Turn off the power after use
Notice
• Operating Environment Temperature should be kept within 10~ 30 ℃
• Ensure that Balance is placed on a level surface
• Periodic external calibrating to ensure weighing accuracy
• Avoid using more than 3kg of the maximum range
• Pay attention to maintain IP68 waterproof performance when cleaning
• Please use the matching charger when charging the built-in battery
