Overview

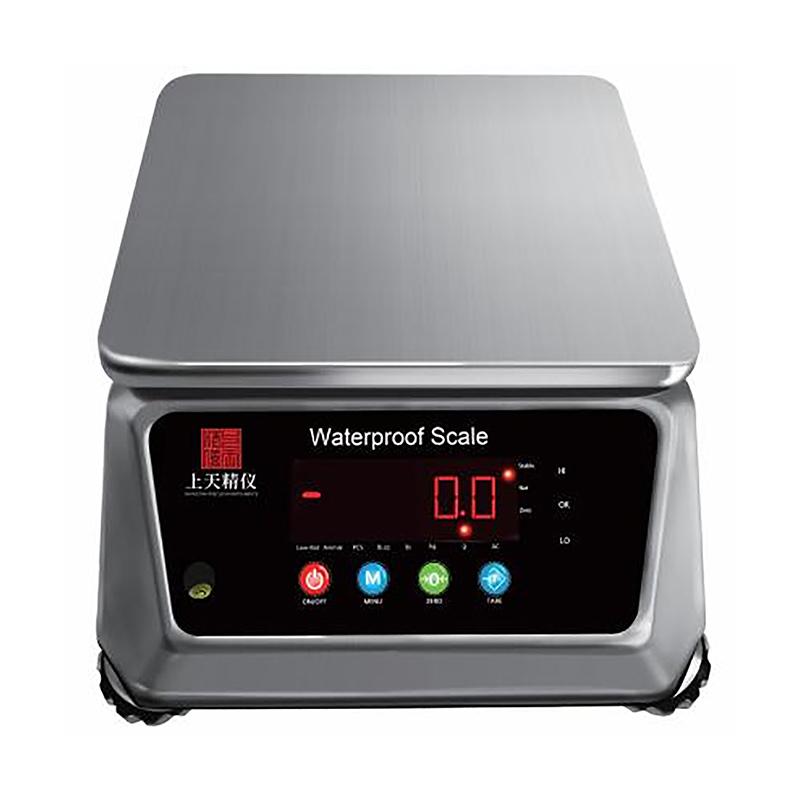

GLF6K Large Range Application Balance is a new generation of High Accuracy weighing equipment launched by Shangtian Jingyi brand. It adopts IP68 Protection Rating design and self-drainage structure, and is suitable for a variety of industrial environments. The Balance has a maximum range of 6kg and an accuracy of 0.1g. It is equipped with a double-sided LED display and a rechargeable battery to support long-term stable operation.
Features
1. New Generation High Accuracy Sensor Provides Stable and Reliable Weighing Results
2. High luminance red LED front and rear double-sided display to meet the requirements of dim environment and double person operation
3. The whole equipment adopts self-drainage structure design, Protection Rating IP68
4.The pan adopts stainless steel double waterproof design
5. Built-in upper and lower limit check alarm function, hidden power cord design
6. Front horizontal bubble adjustment, simple and intuitive operation
7. Weighing unit g/kg optional
8. Built-in rechargeable battery, supports long-term uninterrupted use
9. Optional RS232 interface (waterproof type) and Bluetooth function to meet users' special application needs
Principle
The Balance detects the weight of the item through the High Accuracy Sensor, converts the mechanical signal into an electrical signal, and displays the weighing result through the LED display after being processed by the internal processor. The built-in upper and lower limit weight check function automatically determines whether the weight is within the set range and sends an alarm.
Applications
Industrial weighing, laboratory measurement, Production Quality control, Warehouse management
Standards
IP68 protection class standard
Steps
1. Place the Balance on a stable countertop and adjust it to a horizontal state through the front horizontal bubble
2. Power on or use built-in battery power
3. Select the desired weighing unit (g/kg) after booting.
4. Place the item to be weighed in the center of the pan
5. Read the stable weighing results on the display
6. The threshold can be set in advance when using the upper and lower limit check function
7. Clean the pan and shut down in time after use
Notice
• Operating Environment Temperature should be kept within 10~ 30 ℃
• Ensure that the Balance is placed smoothly and the horizontal bubble is centered
• Avoid use beyond the maximum range of 6kg
Periodically calibrated to ensure accuracy
• Pay attention to waterproof design when cleaning to avoid liquid entering non-waterproof parts
• It is recommended to disconnect the power supply when not in use for a long time
