Overview

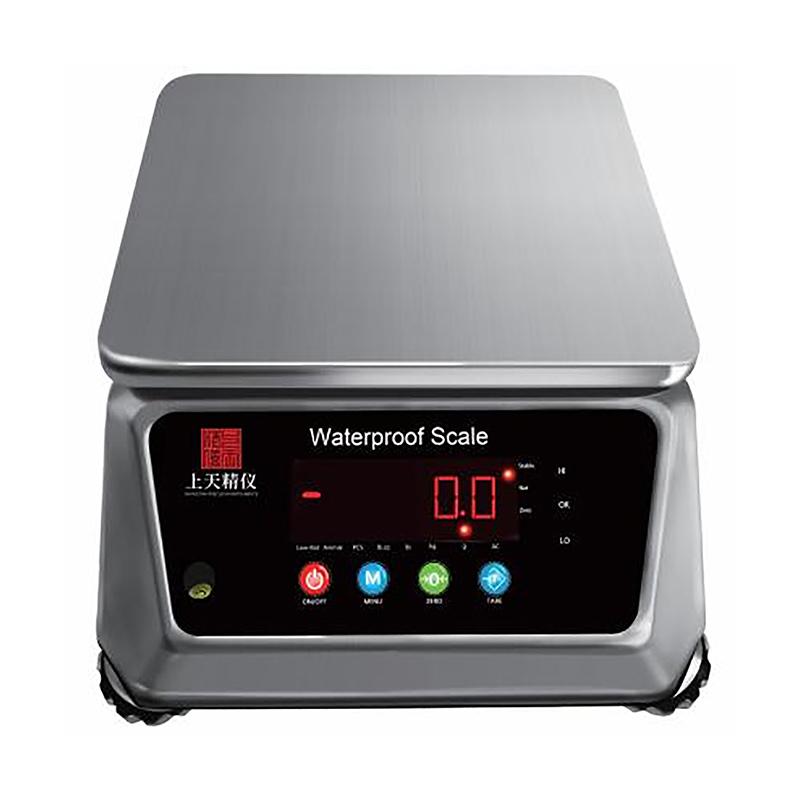

GLF35K Large Range Application Balance is a High Accuracy weighing equipment launched by Shangtian Jingyi brand. The maximum range is 35kg, the readability accuracy is 0.5g. It adopts IP68 Protection Rating design and is suitable for various industrial weighing scenarios.
Features
1. Adopt a new generation of High Accuracy Sensors to provide stable and reliable weighing results
2. High luminance red LED front and rear double-sided display to meet the requirements of dim environment and double person operation
3. The whole equipment adopts self-drainage structure design, Protection Rating IP68
4.The pan adopts stainless steel double waterproof design
5. Built-in upper and lower limit check alarm function, hidden power cord design
6. Front horizontal bubble adjustment, simple and intuitive operation
7. Weighing unit g/kg optional
8. Built-in rechargeable battery, supports long-term uninterrupted use
9. Optional RS232 interface (waterproof type) and Bluetooth function to meet users' special application needs
Principle
The Balance converts the weight signal into an electrical signal through the High Accuracy Sensor, and displays the weighing result after calculation by the internal processing system. The built-in upper and lower limit weight check function can automatically determine whether the weight exceeds the preset range and issue an alarm.
Applications
Industrial weighing, laboratory measurement, production testing, quality control
Standards
IP68 protection class standard
Steps
1. Place the Balance on a smooth countertop and adjust the level through the front horizontal bubble
2. Power on or use built-in battery power
3. Select the desired weighing unit (g/kg) after booting.
4. Place items to be weighed on the pan
5. Read the weighing results on the display
6. When using the upper and lower limit check function, you need to set the threshold first
7. Turn off the power after use
Notice
• Operating Environment Temperature should be kept within 10~ 30 ℃
• Ensure Balance is placed on a level surface
• Avoid using more than 35kg of maximum range
Periodically calibrated to ensure accuracy
• Power frequency AC220V +/- 10%
• Waterproof design is suitable for IP68 Protection Ratings, but abnormal use conditions still need to be avoided
