Overview

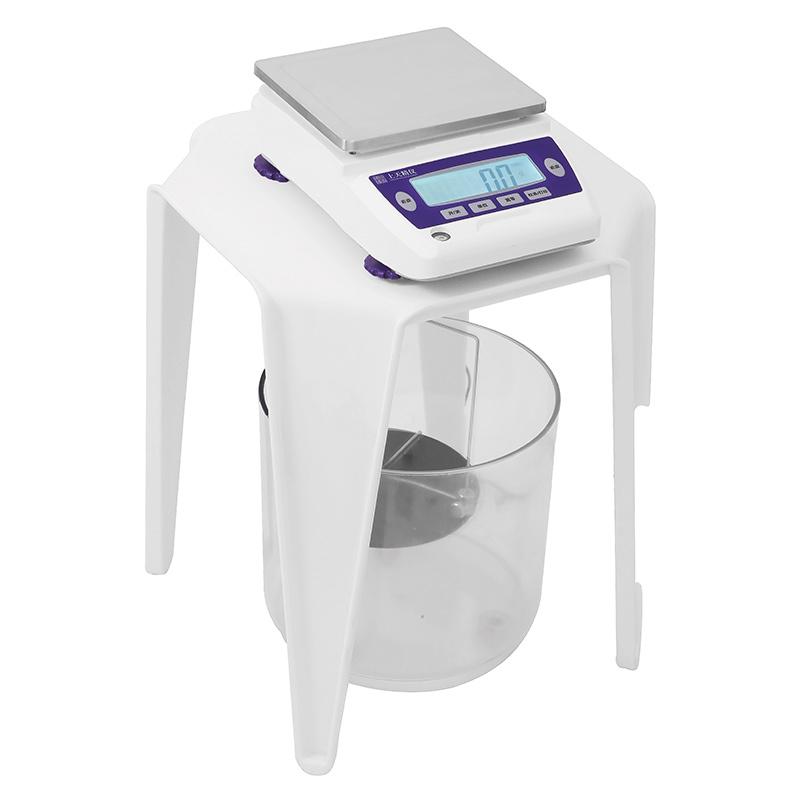

Shangtian Jingyi JA22002P Foam Water Absorbency Tester is a High Accuracy Instrument dedicated to testing the Water Absorbency of foam materials. The device uses a new generation of Sensor technology, equipped with a backlit high definition LCD display and front horizontal bubble adjustment, supports a variety of weighing units and external calibrating functions.
Features
1. A New Generation of High Accuracy Sensors, Providing Stable and Reliable Weighing Results
2. Backlit high definition LCD LCD display, weighing results are clearly displayed
3. Front horizontal bubble adjustment, simple and intuitive operation
4. The weighing stability time and reaction speed are adjustable, and the reaction time is < 2S
5. Various weighing units: mg/g/ct/oz, etc
6. Standard water absorption kit/hydrostatic kit
7. Standard RS232 interface, optional PC-STWC function to transfer weighing data directly to open applications such as Excel
8. Power supply: 110V-240V, 50Hz/60HZ
9. Optional functions: USB storage, lower hook, battery, printer, second display screen, Draft Shield, double check alarm light, etc
Principle
The instrument performs weight measurement on foam samples through High Accuracy Sensor, and combines the standard water absorption kit and hydrostatic kit to accurately determine the Water Absorbency of foam materials. The instrument can realize data output through RS232 interface, and the PC-STWC function can be selected to directly transfer the weighing data to Excel and other application software.
Applications
Foam material water absorption test
Standards
External calibrating function
Steps
1. Adjust the level of the instrument through the front horizontal bubble
2. Choose the appropriate weighing unit
3. Place the test sample on the pan
4. Wait for the weighing to stabilize (reaction time < 2S)
5. Read and record the weighing results
6. Optional to transfer data to Excel and other applications through RS232 interface
Notice
• Make sure the level adjustment of the instrument is accurate before use
• The operation temperature range should be kept at 10 ℃ -30 ℃
Periodic external calibration to ensure measurement accuracy
• Note that the power supply specification is 110V-240V, 50Hz/60HZ
• Optional functions need to be configured and used according to actual needs
