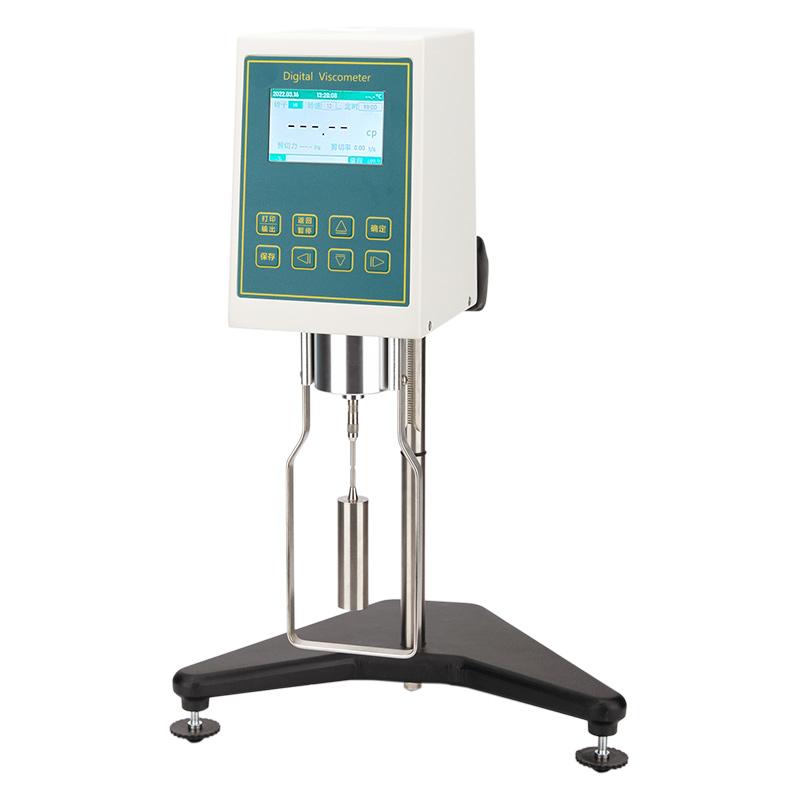

Shangtian Jingyi HAT T series color screen Viscometer high definition LCD multi-group data storage

Name: Shangtian Jingyi HAT T series color screen Viscometer high definition LCD multi-group data storage
Brand: ShangTianJingYi
SKU: NB049981
Price: 2622.0 USD
Availability: InStock

$ 2622.00Ex works

Viscosity measurement range 80~ 8 × 10 ^ 7mPa.s, Rotor speed 0.1-200 r/min stepless speed, repeability +/- 0.5% F.S, equipped with high definition LCD display and multi-set data automatic storage function

Model

Get Quote

Category : Rotational Viscometer

Brand : ShangTianJingYi

SKU : NB049981

Service :The delivery and service By NBCLab.Com

Overview

Shangtian Jingyi T series color screen Viscometer is a High Accuracy viscosity measurement instrument using advanced mechanical design technology and manufacturing process, model HAT. The device is equipped with a backlit high definition LCD LCD display, supports Chinese and English interfaces, and has clear data display. It has data storage function and can automatically store multiple test data. It is suitable for the measurement of absolute viscosity (dynamic viscosity) of Newtonian liquids, and the power supply is AC220V +/- 10,50Hz +/- 10%.

Features

1. Adopt advanced mechanical design technology and manufacturing process, accurate data collection 2. The rotor is made of stainless steel 304, which is easy to clean and durable 3. Use a universal connector at the interface where the rotor is connected 4. Absolute viscosity measurement of Newtonian liquid, that is, dynamic viscosity 5. Backlight high definition LCD LCD display, Chinese and English interface, clear data display 6. With data storage function, it can automatically store multiple sets of test data 7. Standard RS232 interface, optional PC-STWC function to transfer weighing data directly to open applications such as Excel

Principle

The Viscometer measures the absolute viscosity (dynamic viscosity) of Newtonian liquids by swirling/spinning a rotor in the liquid. With continuously variable speed technology, the Rotor speed range is 0.1-200 (r/min), combined with an accurate data collection system to ensure accurate and reliable viscosity measurement.

Applications

Viscosity measurement, Newtonian fluid analysis

Standards

Not mentioned

Steps

Not mentioned

Notice

Not mentioned

Rotor speed
0.1-200 r/min CVT
Rotor specification
R2-R7
Rotor selection
0 #, small sample adapter
temperature Range
0℃-60℃
Sexual repeability
±0.5% (FS)
measurement accuracy
±1%
Temperature control accuracy
±0.1℃
Power supply
AC 220V±10，50Hz±10%
dimensions
280x260x480mm
data interface
RS232
temperature Range
RT+5℃-35℃
net weight
6.0 kg
gross weight
6.8 kg

[Q] Is the price listed on the website the final cost for overseas purchases?

[A] No, it isn't. This is the ex-factory price of the product in the Chinese Mainland. In addition to this price, buyers from different countries need to account for additional costs such as shipping fees, tariffs, and others. For specific regional quotes, please consult our customer service or fill out a quotation form.

[Q] What is the specific process for purchasing the product?

[A] First, please click on the quotation form on the website and fill in detailed information. Our customer service personnel will then send you a quotation based on your specific country and region, confirming payment and delivery methods. Following this, we proceed with contract signing, payment, and shipment. You can then await delivery.

[Q] What should I do if the instrument I purchase needs repair?

[A] After-sales repair for overseas instruments is an unavoidable issue. Our repair terms stipulate that the sender is responsible for the shipping and insurance costs incurred for the repair. Repairs within the warranty period are free, while repair costs beyond the warranty period are determined based on the actual situation.
