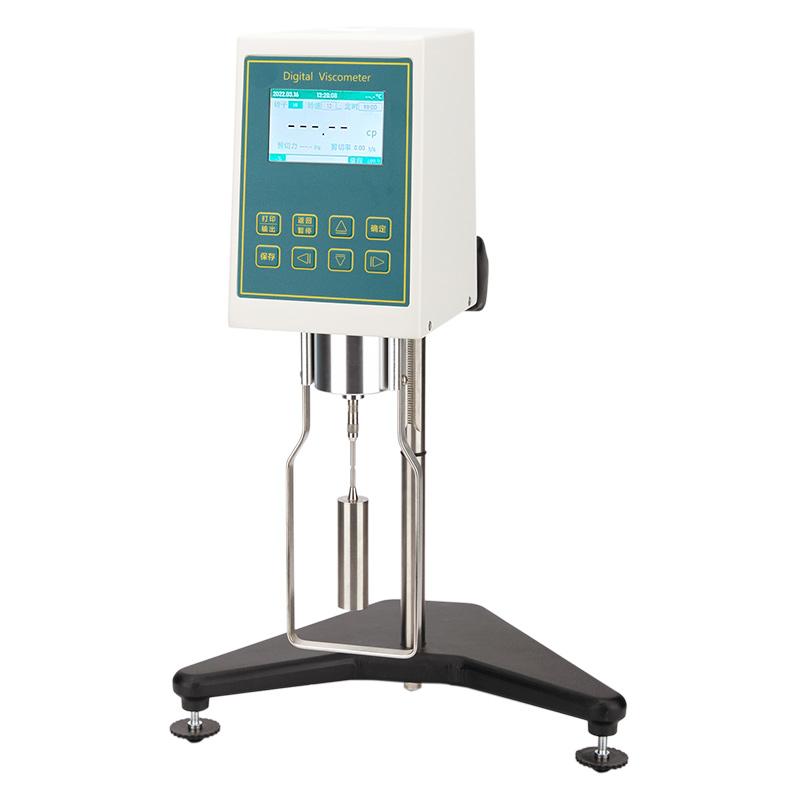

Shangtian Jingyi RVT-2H T series color screen Viscometer high definition LCD LCD screen 40~ 4 × 10 ^ 7mPa.s viscosity range

Name: Shangtian Jingyi RVT-2H T series color screen Viscometer high definition LCD LCD screen 40~ 4 × 10 ^ 7mPa.s viscosity range
Brand: ShangTianJingYi
SKU: NB049983
Price: 4127.0 USD
Availability: InStock

$ 4127.00Ex works

Adopt stainless steel 304 rotor and universal joint design, easy to clean and durable; viscosity measurement range 40~ 4 × 10 ^ 7mPa.s, accuracy +/- 1%, support 0.1-200 r/min stepless speed change; backlit high definition LCD display and Chinese and English interface, data collection is accurate.

Model

RVT-2H

Get Quote

Category : Rotational Viscometer

Brand : ShangTianJingYi

SKU : NB049983

Service :The delivery and service By NBCLab.Com

Overview

RVT-2H T Series Color Viscometer is a High Accuracy viscosity measurement instrument, using advanced mechanical design technology and manufacturing process, equipped with backlit high definition LCD LCD display, supports Chinese and English interface, can measure the absolute viscosity of Newtonian liquids (dynamic viscosity), suitable for a variety of industrial and research fields.

Features

1. Adopt advanced mechanical design technology and manufacturing process, accurate data collection 2. The rotor is made of stainless steel 304, which is easy to clean and durable 3. Use a universal connector at the interface where the rotor is connected 4. Absolute viscosity measurement of Newtonian liquid, that is, dynamic viscosity 5. Backlight high definition LCD LCD display, Chinese and English interface, clear data display 6. With data storage function, it can automatically store multiple sets of test data 7. Standard RS232 interface, optional PC-STWC function to transfer weighing data directly to open applications such as Excel

Principle

The Viscometer swirls/spins through the liquid to measure the absolute viscosity (dynamic viscosity) of Newtonian liquids, uses continuously variable speed control Rotor speed, and collects data with High Accuracy Sensor, and clearly displays the measurement results through the LCD display.

Applications

Industry, research

Rotor speed
0.1-200 r/min CVT
Rotor selection
It doesn't match No. 2-7.
measurement accuracy
±1%
Temperature control accuracy
±0.1℃
Power supply
AC 220V±10，50Hz±10%
dimensions
280x260x480mm
data interface
RS232
temperature Range
RT+5℃-35℃
net weight
6.0 kg
gross weight
6.8 kg

[Q] Is the price listed on the website the final cost for overseas purchases?

[A] No, it isn't. This is the ex-factory price of the product in the Chinese Mainland. In addition to this price, buyers from different countries need to account for additional costs such as shipping fees, tariffs, and others. For specific regional quotes, please consult our customer service or fill out a quotation form.

[Q] What is the specific process for purchasing the product?

[A] First, please click on the quotation form on the website and fill in detailed information. Our customer service personnel will then send you a quotation based on your specific country and region, confirming payment and delivery methods. Following this, we proceed with contract signing, payment, and shipment. You can then await delivery.

[Q] What should I do if the instrument I purchase needs repair?

[A] After-sales repair for overseas instruments is an unavoidable issue. Our repair terms stipulate that the sender is responsible for the shipping and insurance costs incurred for the repair. Repairs within the warranty period are free, while repair costs beyond the warranty period are determined based on the actual situation.
