Overview

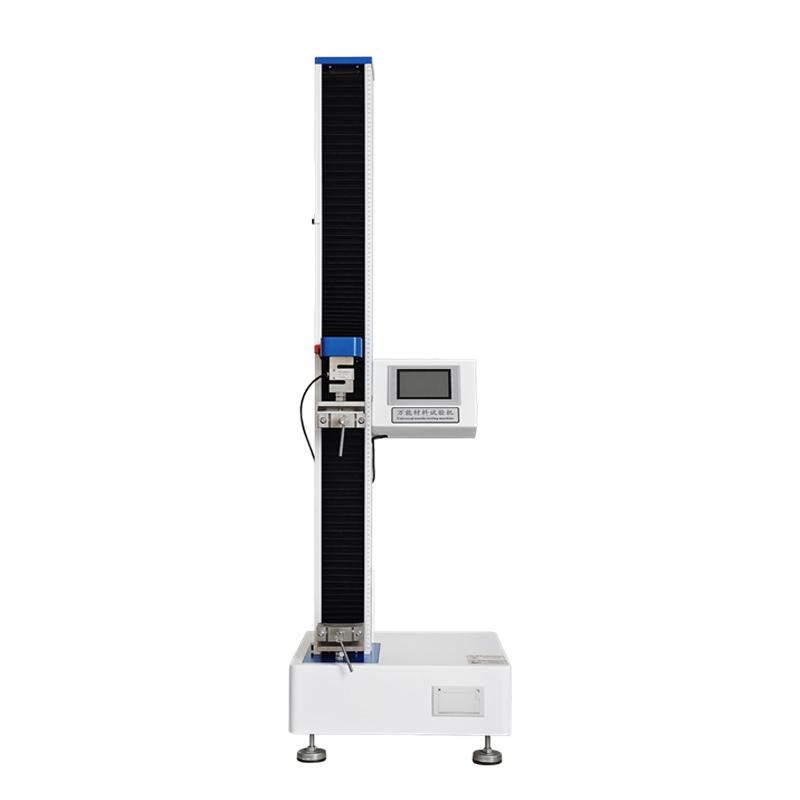

Digital single-arm Universal Testing Machine (model: STX200) is a new generation of microcomputer-controlled electronic universal testing machine specially designed for universities and research institutes. The equipment draws on international advanced technology, with beautiful appearance, convenient operation, stable and reliable performance. It is suitable for testing of various mechanical properties such as stretching, disbonding and tearing of Plastic film, composite film, soft Encasement material, Adhesive, adhesive tape, self-adhesive, rubber, paper and other products. It is a reliable testing equipment for scientific research institutions, Universities & colleges, industrial and mining enterprises, technical supervision, commodity inspection and arbitration and other departments.
Features
1. The main engine adopts a high-steel single-arm structure with a beautiful appearance.
2. High Accuracy ball screw, efficient and smooth transmission.
3. The transmission part is driven by a circular arc tooth synchronous belt, and there is no gap in both directions during the transmission process.
4. High Accuracy stepper motor and drive system are used to ensure smooth transmission and accurate control.
5. The fixture is specially designed for firm clamping, easy operation, and no jaw slippage.
6. The special process guarantees the coaxiality of the testing machine and eliminates the influence of irregular samples on the Sensor.
7. The control system includes load measurement, displacement measurement and deformation measurement system.
8. Large screen LCD display real-time control parameters and measurement results.
9. It has functions such as overload protection.
Principle
The testing machine adopts High Accuracy stepper motor and driver, which drives the precision ball drive screw and guide rod to load after deceleration, so as to complete the test of tensile, compression, bending, shearing and other mechanical properties of the sample. It has a wide and accurate loading speed and force measurement range, and has high accuracy and Sensitivity for the measurement and control of load, deformation and displacement.
Applications
Plastic film, composite film, soft Encasement material, Adhesive, adhesive tape, adhesive, rubber, paper and other products of tensile, disbonding tearing performance test
Notice
• Working environment: room temperature - 35 ℃, relative humidity does not exceed 80%.
• Power supply of the whole machine: single phase, 220V +/- 10%, 50Hz.
