Overview

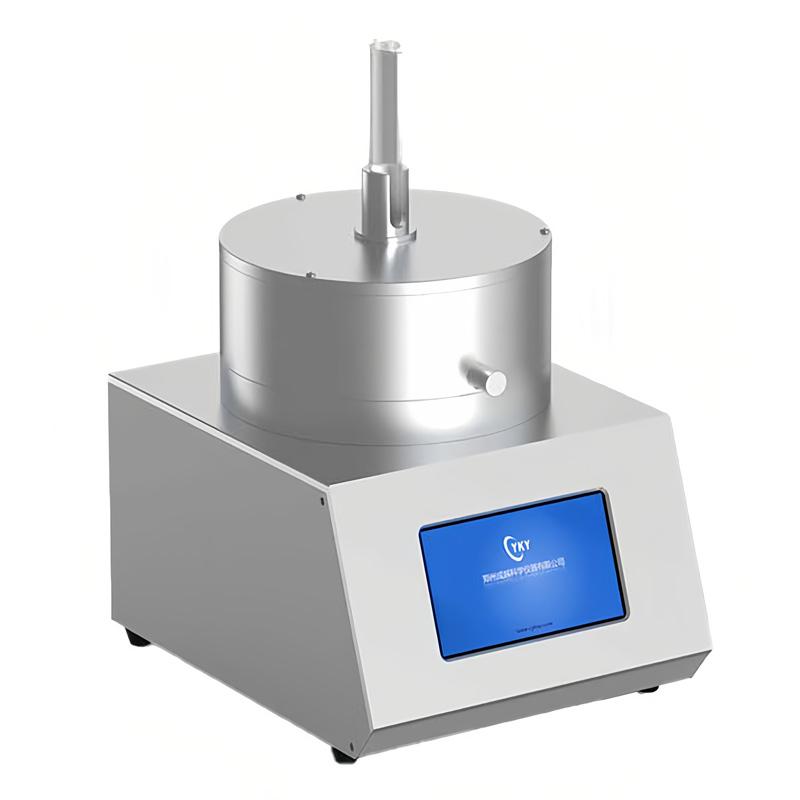

The HN-SPC8-E heated spin Coater adopts an all-aluminum alloy cavity, which is beautiful and sturdy. The instrument adopts an advanced precision motor, and the speed can reach 10,000 rpm, which effectively guarantees the uniformity of film formation. In addition to the basic spin coating function, this product is also equipped with a heating component, which can be heated to 200 ° C, controlled by an intelligent temperature control meter, the temperature measurement is accurate, and the heating process is completely controllable. In addition, this instrument adopts touch screen control, which can preset Linear dispersion, which greatly simplifies the use process and reduces the learning cost. It is very suitable for laboratory purchase.
Features
1. All-aluminum alloy cavity, beautiful and sturdy
2. Precision motor, the speed can reach 10000 rpm, to ensure the uniformity of film formation
3. Equipped with heating components, the maximum heating temperature is 200 ° C
4. Intelligent temperature control meter, accurate temperature measurement, controllable heating process
5. Touch screen control, Linear dispersion can be preset
6. Can store 5 Linear dispersions, each Linear dispersion 5 segments
7. Dry mechanical pump, pumping rate 50L/min
Principle
The substrate swirl/spin is driven by a precision motor, and the liquid or colloidal material is uniformly coated on the surface of the substrate by centrifugal force to form a thin film. Equipped with a heating component and an intelligent temperature control system, the substrate can be heated during the spin coating process to achieve a temperature-controlled thin film preparatory process.
Applications
Photoresist spin coating, bio-foster base fabrication, sol-gel method of polymer film fabrication
Steps
1. Prepare substrates ≤ 8 inches in diameter (silicon, crystal, quartz, Pottery and porcelain, etc.)
2. Manually drop liquid or colloidal materials on the surface of the substrate
3. Preset uniform glue Linear dispersion parameters through touch screen
4. Set the heating temperature (RT +~ 200 ℃)
5. Start the equipment for spin coating operation
6. Remove the substrate after spinning coating
Notice
• Substrate diameter must not exceed 8 inches (200mm)
• Heating temperature range from room temperature to 200 ℃
• Use AC220V 50/60Hz power supply
• The air extraction interface is φ 6mm quick screw interface
• Optional precision syringe pump instead of manual glue drop method
