Overview

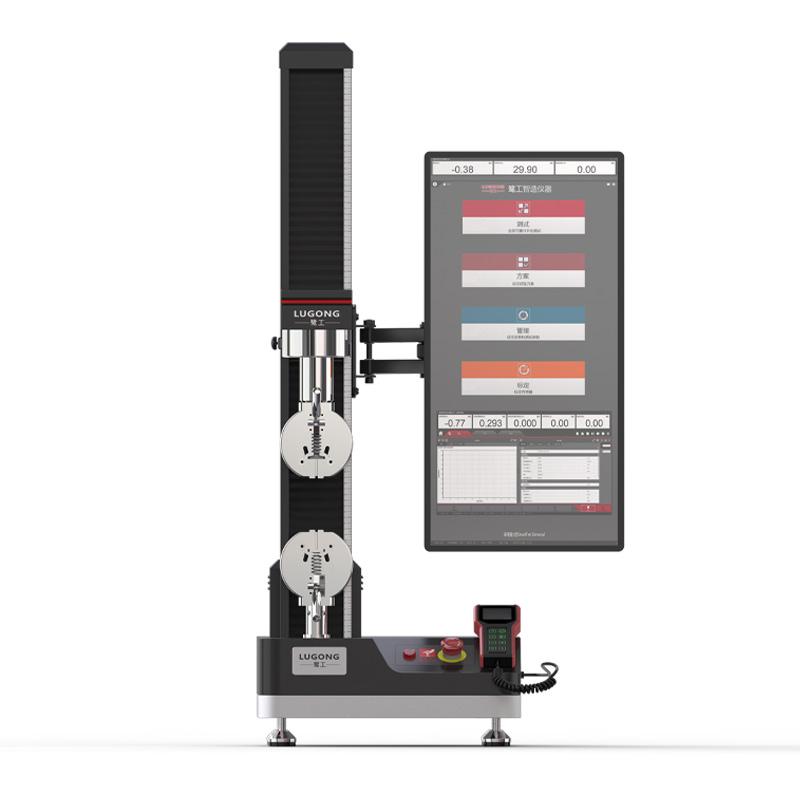

LG-58SC-5 Microcomputer Controlled Electronic Universal Testing Machine is a High Accuracy material testing equipment with a maximum test force of 5kN and an accuracy class of 0.5. It adopts microcomputer control and has a wide range of material testing applicability.
Features
The maximum test force is 5kN, the accuracy class is 0.5, and the test force Indication Error is within +/- 0.5% of the indication.
2. Test force resolution up to 500,000 yards, the whole process is not divided into gears, and the resolution is constant.
3. Displacement resolution up to 0.04μm, high control accuracy.
4. Compatible with hundreds of types of fixtures, highly scalable.
5. Wide range of stress, strain and displacement control rates and high accuracy.
Principle
The testing machine precisely controls the movement of the beam through the microcomputer system, and applies tensile, compression, bending and other forces to the samples installed between the fixtures. The High Accuracy Sensor real-time measurement of the test force, displacement and deformation data is processed and displayed by the control system, so as to complete the test of the mechanical performance of the material.
Applications
Metal Materials, Aerospace, Powder Metallurgy, Magnetic Materials, Pottery and porcelain manufacturing, Rubber Plastics, Measurement Quality control, Commodity Inspection and Arbitration, Technical Supervision Department, Colleges and Universities, Research Laboratories, Basic Materials Laboratories, Metallurgical Steel, Machinery Manufacturing, Electronics, Automobile Production, Spinning & Weaving Chemical Fibers, Wire and Cable, Encasement Materials and Food, Instruments, Medical Apparatus, Petrochemicals, Civil Nuclear Energy, Energy Batteries, Basic Materials, Special Materials
Standards
GB/T2611-2022, GB/T 16491-2022, GB/T12160, GB/T16825, compatible with ASTM, ISO, GB and other related standards
Steps
1. Turn on the single-phase 220V power supply and start the device.
2. Install suitable fixtures and specimens according to test standards and requirements.
3. Set test parameters on the microcomputer control software, such as test type, control mode, rate, etc.
4. Start the test, and the device automatically runs and applies force.
5. After the test is completed, the software automatically analyzes and generates a test report.
Notice
The equipment should use a single-phase 220V +/- 10%, 50Hz power supply with a power of about 1kW.
* The installation environment should be stable, and the weight of the host should be about 65kg.
The effective test width is 400mm, and the moving stroke of the beam (without installing the fixture) is 700mm. When selecting the sample, pay attention to the size.
Before operation, please ensure that the fixture is firmly installed and the sample is held correctly.
* Regular verification and maintenance of equipment according to relevant standards to ensure test accuracy.
