$ 4849.00Ex works
Maximum test force 10kN, accuracy level 0.5, test force resolution up to 500,000 yards, compatible with hundreds of fixtures, to meet a variety of international and domestic standard testing needs.
Category : Tensile Testing Machine
Brand : LUGONG
SKU : NB049998
Service :The delivery and service By NBCLab.Com

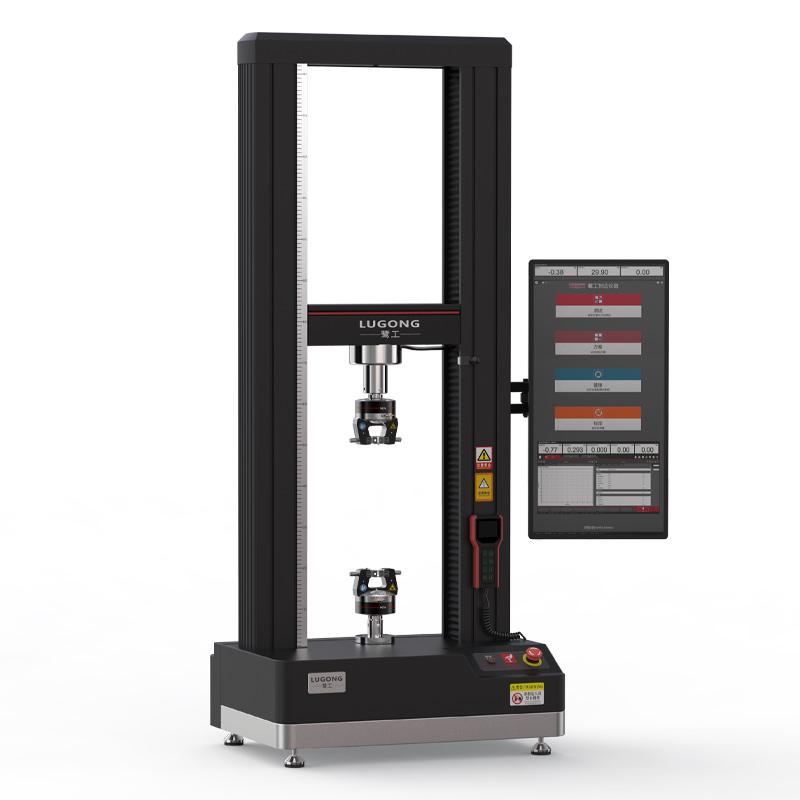

LG-58TM-10 Microcomputer Controlled Electronic Universal Testing Machine is a precision testing equipment with a maximum test force of 10kN and an accuracy class of 0.5. It adopts microcomputer control and has High Accuracy Force, Displacement and Deformation measurement capabilities. It is suitable for testing and analyzing various static mechanical properties such as tensile, compression, bending, shear, and disbonding of metals, Non-metallic and composites.
The maximum test force is 10kN, the accuracy class is 0.5, and the test force Indication Error is within +/- 0.5% of the indication. 2. Test force resolution up to 500,000 yards, the whole process is not divided into gears, and the resolution is constant. 3. High Accuracy Displacement measurement, resolution up to 0.04μm, Displacement Indication Error +/- 0.5%. Measurement range (0.4%~ 100% F. S), indication relative error within +/- 0.5%. 5. Provide three control modes of stress, strain and displacement, with wide rate range and high control accuracy. 6. The effective test width is 400mm, and the beam movement stroke is large (1150mm when the fixture is not installed), which is suitable for various sizes of specimens. 7. Compatible with hundreds of types of fixtures, the test function is highly scalable. 8. Compact structure, host size 750 * 540 * 1750mm, weight about 170kg, low power consumption (1kW).
The testing machine adopts a microcomputer control system, which drives the beam to move through a servo motor, and applies tensile and compressive loads to the sample. High Accuracy Load Sensor and Deformation Measurement Device collect real-time test force, displacement and deformation data, transmit it to the computer for processing, display and analysis, and finally obtain various mechanical properties of the material. Its control core can accurately realize closed-loop control of stress, strain or displacement rate.
Metal Materials, Aerospace, Powder Metallurgy, Magnetic Materials, Pottery and porcelain manufacturing, Rubber Plastics, Measurement Quality control, Commodity Inspection and Arbitration, Technical Supervision Department, Colleges and Universities, Research Laboratories, Basic Materials Laboratories, Metallurgical Steel, Machinery Manufacturing, Electronics, Automobile Production, Spinning & Weaving Chemical Fibers, Wire and Cable, Encasement Materials and Food, Instruments, Medical Apparatus, Petrochemicals, Civil Nuclear Energy, Energy Batteries, Basic Materials, Special Materials
GB/T2611-2022, GB/T 16491-2022, GB/T12160, GB/T16825, compatible with ASTM, ISO and other related standards
1. Select and install the appropriate fixture according to the test standards and specimens. 2. Place the specimen correctly between the upper and lower clamps. 3. Turn on the host and computer power and run the test software. 4. Set the test type, control mode, rate, sample parameters, etc. in the software. 5. Check the status of each Sensor and perform necessary operations such as force value clearing. 6. Start the test, and the device will be automatically loaded according to the set program. 7. Linear dispersion and data are displayed in real time during the test. 8. After the specimen breaks or reaches the set conditions, the test is automatically stopped. 9. Software analyzes data, generates and saves test reports.
Equipment should be installed on a stable, level foundation to avoid vibration and interference. Check that the power supply is single-phase 220V +/- 10%, 50Hz, and ensure good grounding before use. When selecting a fixture, ensure that its rated load matches the test force and is installed correctly. When clamping the specimen, ensure that the specimen axis is consistent with the direction of force to avoid partial loading. When setting test parameters, the control mode and rate should be selected reasonably according to the material characteristics and standard requirements. During the test, it is strictly forbidden to touch the moving beams and specimens to ensure safety. * Regular maintenance of equipment and verification according to relevant standards to ensure Measurement accuracy. Non-professional personnel should not disassemble or adjust key components inside the equipment.
[A] No, it isn't. This is the ex-factory price of the product in the Chinese Mainland. In addition to this price, buyers from different countries need to account for additional costs such as shipping fees, tariffs, and others. For specific regional quotes, please consult our customer service or fill out a quotation form.
[A] First, please click on the quotation form on the website and fill in detailed information. Our customer service personnel will then send you a quotation based on your specific country and region, confirming payment and delivery methods. Following this, we proceed with contract signing, payment, and shipment. You can then await delivery.
[A] After-sales repair for overseas instruments is an unavoidable issue. Our repair terms stipulate that the sender is responsible for the shipping and insurance costs incurred for the repair. Repairs within the warranty period are free, while repair costs beyond the warranty period are determined based on the actual situation.
