Overview

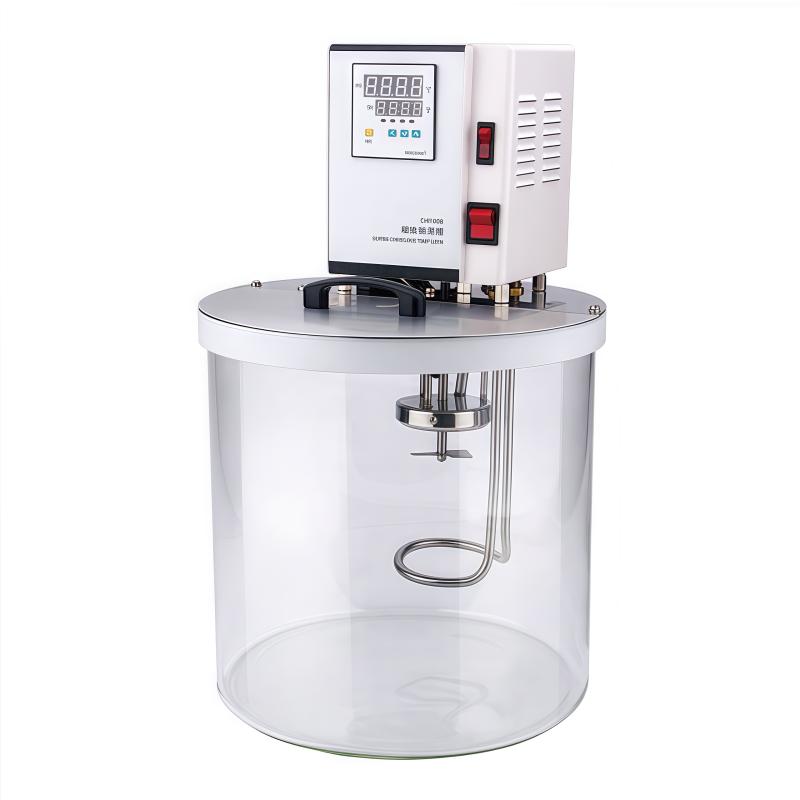

Shangtian Jingyi 501 Super Thermostatic Sink is a precision temperature control device using a microcomputer thermostatic control system, suitable for a variety of liquid medium thermostatic control, with High Accuracy Temperature Control and Multifunctional Application Features.
Features
1. Design of a new generation of microcomputer thermostatic control system
2. Adopt imported PT100 temperature transducer
3. With breaking protection and over-temperature alarm function
4. Temperature Fluctuation +/- 0.05 ℃
5. Display resolution 0.1 ° C
6. Pump flow rate 8L/min
7. Support internal/external circulation
8. Tank volume 20L, Tank opening dimensions φ 150mm, Tank depth 300mm
Principle
The equipment monitors the temperature of the liquid medium in the tank in real time through the microcomputer control system and the imported PT100 temperature transducer, and combines the internal/external circulation pump to achieve accurate temperature adjustment. When the temperature abnormality or Sensor fault is detected, the protection function is automatically started.
Applications
Petroleum, chemical, bioengineering fields, combined with Viscometer, Rotary Evaporator, circulating water Vacuumpump, Magnetic Stirrer and other instruments
Steps
1. Choose the appropriate liquid medium (such as alcohol, water, silicone oil, etc.) to inject into the Tank according to your needs
2. Connect external instruments such as Viscometer or Rotary Evaporator
3. Set the target temperature and control parameters
4. Start the device for thermostatic control
5. Monitor operating status and perform media replacement or maintenance if necessary
Notice
• Ultra-low temperature working interval requires trifluoromethane as the medium
• Tank volume and opening dimensions meet application requirements before use
• Regularly check whether the temperature transducer and alarm function are normal
• Avoid operating outside the Temperature range (RT + 5~ 95 ℃)
• Pay attention to the power of the equipment 1500W to ensure the safety of power supply
