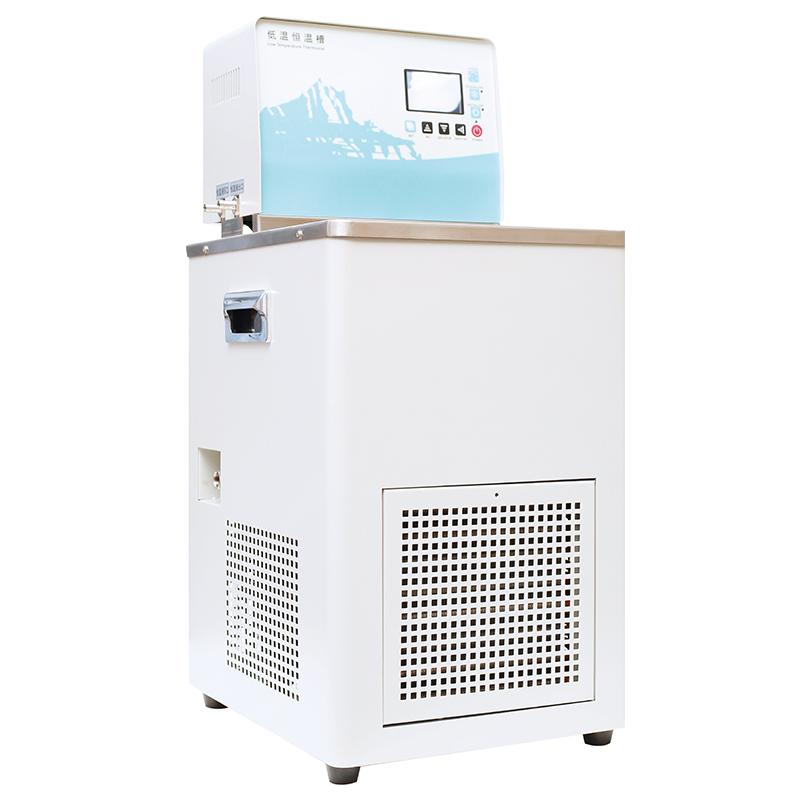

Shangtian Jingyi DC-0506 Low Temperature Circulating Bath Environmental Protection Refrigeration PID Temperature Control +/- 0.05 ℃

Name: Shangtian Jingyi DC-0506 Low Temperature Circulating Bath Environmental Protection Refrigeration PID Temperature Control +/- 0.05 ℃
Brand: ShangTianJingYi
SKU: NB050005
Price: 990.0 USD
Availability: InStock

$ 990.00Ex works

Temperature range -5~ 100 ℃, Temperature Uniformity +/- 0.05 ℃, using non-heat centrifugal circulation pump and U-shaped return circulation design to achieve highly uniform flow field and temperature field, with multiple safety protection devices.

Model

DC-0506

Get Quote

Category : Thermostatic Bath

Brand : ShangTianJingYi

SKU : NB050005

Service :The delivery and service By NBCLab.Com

Overview

DC-0506 Low Temperature Circulating Bath is a precision temperature control equipment of Shangtian Jingyi brand, Temperature range -5~ 100 ℃, Temperature Uniformity +/- 0.05 ℃, Tank volume 6L. The product adopts fully enclosed environmentally friendly Compressor refrigeration system and integrated PID automatic temperature control program to ensure stable and reliable operation.

Features

1. Adopt a fully enclosed environmentally friendly Compressor refrigeration system, free of chlorofluorocarbons 2. Integrated new generation PID automatic temperature control program to ensure stable and reliable operation 3. Equipped with a large-screen high-brightness LCD screen (Chinese and English), the test results are clearly displayed 4. Adopt non-heat centrifugal circulation pump to effectively reduce the impact on the temperature field of the tank body 5. The domestic circulation system is designed on the principle of U-shaped reflux circulation to achieve turbulence and high uniformity of the flow field and temperature field in the tank 6. The fuselage shell adopts anti-aging electrostatic spray technology, and the liner and countertop are made of high-quality 304 brushed stainless steel 7. Fine workmanship of the chassis front panel and countertop, coupled with a unique user-friendly R rounded corner design structure 8. The design of the drainage system can meet the needs of various laboratories and enterprises to produce liquid exchange 9. With power-off protection, upper and lower limit temperature alarm settings, low water level protection and alarm and other safety protection devices 10. Optional functions: extended external PT100 temperature transducer, built-in 1~ 30 temperature control program, built-in chilled down coil RS232, RS485, etc

Principle

The equipment realizes precise temperature control through a fully enclosed environmentally friendly Compressor refrigeration system and an integrated PID automatic temperature control program. The domestic circulation system is designed with the principle of U-shaped return circulation, combined with a non-heat centrifugal circulation pump, to achieve turbulence and high uniformity in the flow field and temperature field in the tank.

Applications

Laboratory, enterprise production

Temperature Range
-5~100℃
Temperature Uniformity
±0.05℃
Tank Volume
6L
opening dimensions
180*140mm
Tank Size
270*200*130mm
pump flow
10L/min

[Q] Is the price listed on the website the final cost for overseas purchases?

[A] No, it isn't. This is the ex-factory price of the product in the Chinese Mainland. In addition to this price, buyers from different countries need to account for additional costs such as shipping fees, tariffs, and others. For specific regional quotes, please consult our customer service or fill out a quotation form.

[Q] What is the specific process for purchasing the product?

[A] First, please click on the quotation form on the website and fill in detailed information. Our customer service personnel will then send you a quotation based on your specific country and region, confirming payment and delivery methods. Following this, we proceed with contract signing, payment, and shipment. You can then await delivery.

[Q] What should I do if the instrument I purchase needs repair?

[A] After-sales repair for overseas instruments is an unavoidable issue. Our repair terms stipulate that the sender is responsible for the shipping and insurance costs incurred for the repair. Repairs within the warranty period are free, while repair costs beyond the warranty period are determined based on the actual situation.
