Overview

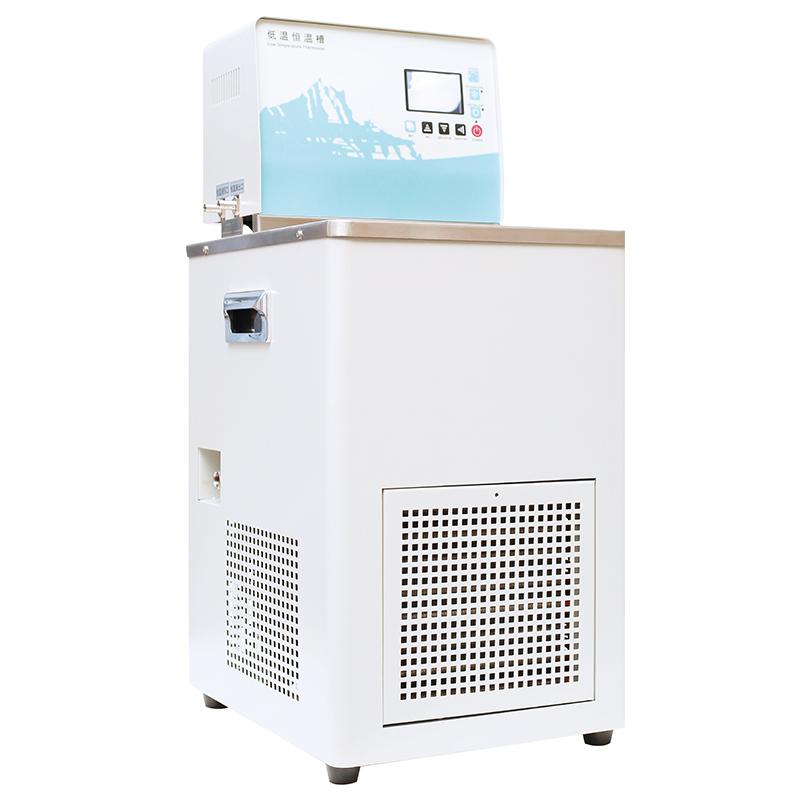

DC-0510 Low Temperature Circulating Bath is a precision temperature control equipment of Shangtian Jingyi brand. Temperature range is -5~ 100 ℃, Temperature Uniformity is up to +/- 0.05 ℃, and Tank volume is 10L. The product adopts fully enclosed environmentally friendly Compressor refrigeration system, integrated PID automatic temperature control program, equipped with large screen LCD display, suitable for laboratory and enterprise production environment.
Features
1. Adopt a fully enclosed environmentally friendly Compressor refrigeration system, free of chlorofluorocarbons
2. Integrate a new generation of PID automatic temperature control program for stable and reliable operation
3. Equipped with a large-screen high-brightness LCD screen (Chinese and English), the display is clear
4. Adopt a non-heat centrifugal circulation pump to reduce the impact on the temperature field of the tank body
5. The domestic circulation system adopts the U-shaped return circulation principle to achieve turbulence and high uniformity in the flow field and temperature field
6. The shell adopts anti-aging electrostatic spray technology, and the liner and countertop are high-quality 304 brushed stainless steel
7. The front panel and countertop of the chassis are finely crafted and adopt a user-friendly R rounded corner design
8. The drainage system is designed to meet the needs of various laboratories and enterprises to produce liquid exchange
9. With power-off protection, upper and lower limit temperature alarm settings, low water level protection and alarm and other safety devices
10. Optional functions: extended external PT100 temperature transducer, built-in 1~ 30 temperature control program, built-in chilled down coil, RS232, RS485, etc
Principle
Low Temperature Circulating Bath achieves temperature control through a fully enclosed environmentally friendly Compressor refrigeration system, and integrates PID automatic programs to ensure stable operation. The domestic circulation system adopts the principle of U-shaped return circulation, combined with a heat-free centrifugal circulation pump, to promote turbulence in the flow field and temperature field in the tank, and achieve a highly uniform temperature distribution.
Applications
Laboratory, enterprise production
Steps
1. Connect the power supply and turn on the device.
2. Set the required temperature parameters through the large-screen LCD screen
3. Start the domestic circulation system to ensure uniform flow field
4. Monitor the temperature display, using optional features such as External Sensors if necessary
5. After use, change the liquid or clean it through the water discharge system
Notice
• Make sure the equipment is placed in a smoothly ventilated place
• Regularly check the water level to avoid low water level operation
• Set the upper and lower limit temperature alarm to prevent overheating
• Use environmentally friendly refrigerants to avoid leakage
• Use appropriate tools when cleaning to avoid damaging the stainless steel surface
• Optional functions need to be connected and used correctly according to the instructions
