Overview

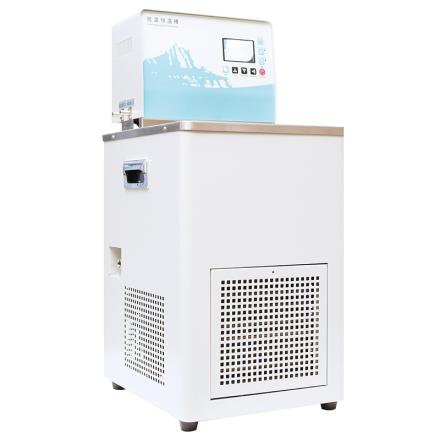

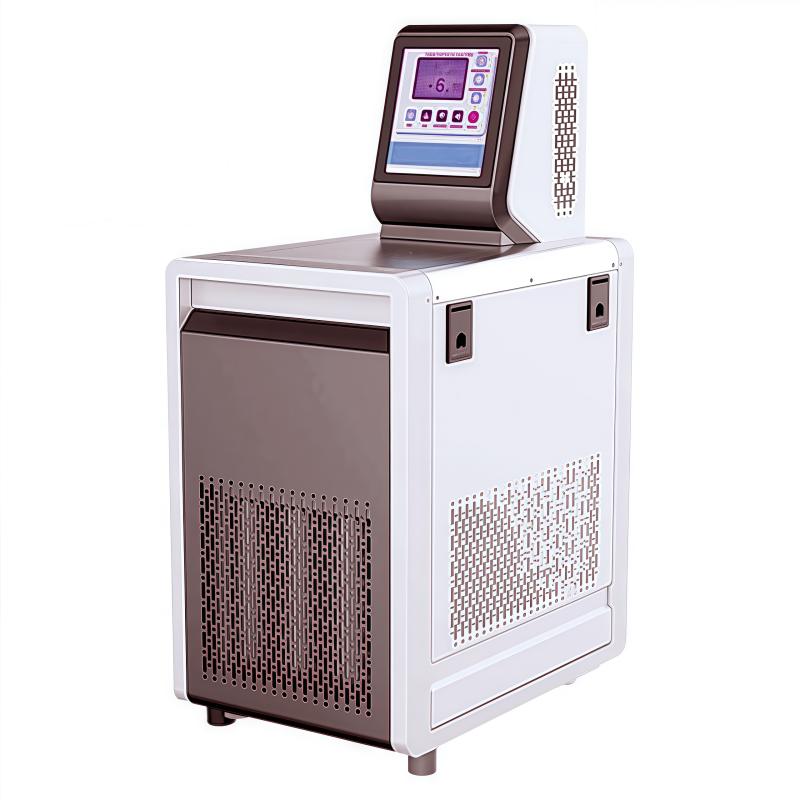

The DC-4020N Low Temperature Circulating Bath is a precision temperature control device from the Shangtian Jingyi brand. Temperature range covers -40 ° C to 100 ° C, temperature resolution is 0.1 ° C, and Tank volume is 20L. It is suitable for precise temperature control needs in laboratory and industrial environments.
Features
1. Adopt a fully enclosed environmentally friendly Compressor refrigeration system, equipped with multiple overheating and overcurrent protection devices
2. Large screen backlit LCD display, working status information is clearly visible
3. Equipment and instrumentation with temperature calibration and self-tuning functions
4. The control part adopts ABS mold design, the overall Appearance is streamlined
5. High-performance Stirring cycle motor, using non-heat centrifugal circulation pump
6. Plate and liner are made of stainless steel 304, easy to clean and durable
7. Refrigeration coil increases positioning and surface preparation process, fine workmanship
8. Motor impeller is fully enclosed to prevent safety hazards
9. The side panels around the equipment can be flexibly disassembled and assembled
10. The circulation interface and drain port are made of stainless steel 304 pagoda joints, and the drain valve is built-in hidden
11. Standard circulating silicone tube and thermal insulation sleeve, easy for customers to use flexibly
Principle
The Low Temperature Circulating Bath achieves temperature control through a fully enclosed environmentally friendly Compressor refrigeration system, combined with a high-performance Stir cycle motor and a heat-free centrifugal cycle pump to ensure uniform and stable temperature in the tank. The equipment instrument precisely adjusts the temperature through temperature calibration and self-setting functions to maintain the thermostatic state within the set range.
Applications
Laboratory and industrial environment
Steps
1. Connect the power supply and turn on the device.
2. Set the desired temperature through the large-screen LCD display
3. Start the refrigeration system and circulating pump
4. Monitor working status information to ensure stable temperature
5. Turn off the equipment and clean the platen and liner after use
Notice
• Make sure that the side panels around the equipment are firmly installed to avoid accidental disassembly
• Regularly check the circulation interface and drain to prevent leakage
• When using standard circulating silicone tubes and insulation sleeves, pay attention to connection safety
• Avoid long-term operation under overheating or overcurrent conditions to protect the refrigeration system
• Use appropriate tools when cleaning to avoid damaging the stainless steel surface
