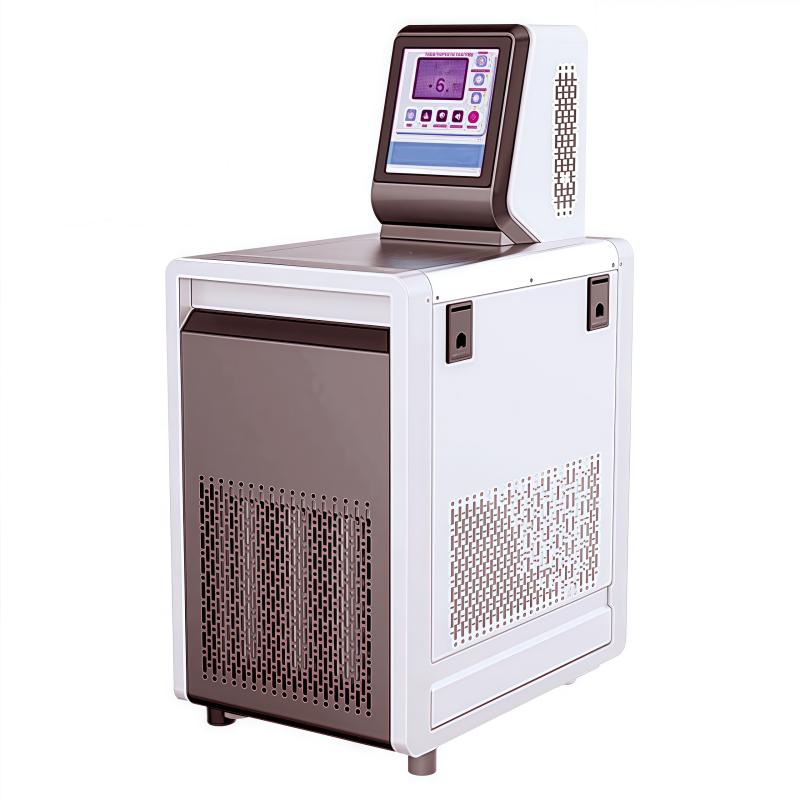

Shangtian Jingyi DC-4030N Low Temperature Circulating Bath Environmental Protection Refrigeration Large Screen LCD Display

Name: Shangtian Jingyi DC-4030N Low Temperature Circulating Bath Environmental Protection Refrigeration Large Screen LCD Display
Brand: ShangTianJingYi
SKU: NB050059
Price: 4917.0 USD
Availability: InStock

$ 4917.00Ex works

Temperature range -40~ 100 ℃, temperature resolution 0.1 ℃, Tank volume 30L; using environmentally friendly Compressor refrigeration system, with overheating and overcurrent protection, large screen backlight LCD display is clear, easy to operate and monitor.

Model

DC-4030N

Get Quote

Category : Thermostatic Bath

Brand : ShangTianJingYi

SKU : NB050059

Service :The delivery and service By NBCLab.Com

Overview

Shangtian Jingyi DC-4030N Low Temperature Circulating Bath is a precision temperature control equipment with a Temperature range of -40~ 100 ° C and a Tank volume of 30L. It uses a fully enclosed environmentally friendly Compressor refrigeration system and a high-performance Stir cycle motor, which is suitable for temperature control needs in laboratories and industrial fields.

Features

1. Adopt a fully enclosed environmentally friendly Compressor refrigeration system with multiple overheating and overcurrent protection devices 2. Large screen backlit LCD display, clear working status information display 3. Equipment instrumentation with temperature calibration and self-tuning functions 4. Control part adopts ABS mold design, Overall Appearance streamline design 5. High-performance Stirring cycle motor, using non-heat centrifugal circulation pump 6. Plate and liner are made of stainless steel 304 for easy cleaning and durability 7. Refrigeration coil increases positioning and surface preparation process, fine workmanship 8. The motor impeller is fully enclosed to prevent potential safety hazards 9. The side panels around the equipment can be flexibly disassembled and assembled 10. The circulation interface and drain are all made of stainless steel 304 pagoda joints, and the drain valve is designed with built-in hidden type 11. Standard circulating silicone tube + thermal insulation sleeve, easy for customers to use flexibly

Principle

Low Temperature Circulating Bath achieves accurate temperature control through a fully enclosed and environmentally friendly Compressor refrigeration system, and cooperates with a high-performance Stir circulation motor and a heat-free centrifugal circulation pump to ensure uniform and stable temperature in the Tank. Temperature calibration and self-tuning are carried out through instrumentation.

Specifications

Temperature range: -40~ 100 ℃, Temperature resolution: 0.1 ℃, Tank size: 400 * 325 * 230mm, Pump flow: 10L/min, Tank opening dimensions: 310 * 280mm, Tank volume: 30L

Temperature Range
-40~100℃
Temperature resolution
0.1℃
Tank Size
400*325*230mm
circulating pump flow
10 L/min
opening dimensions
310x280mm
Tank Volume
30L

[Q] Is the price listed on the website the final cost for overseas purchases?

[A] No, it isn't. This is the ex-factory price of the product in the Chinese Mainland. In addition to this price, buyers from different countries need to account for additional costs such as shipping fees, tariffs, and others. For specific regional quotes, please consult our customer service or fill out a quotation form.

[Q] What is the specific process for purchasing the product?

[A] First, please click on the quotation form on the website and fill in detailed information. Our customer service personnel will then send you a quotation based on your specific country and region, confirming payment and delivery methods. Following this, we proceed with contract signing, payment, and shipment. You can then await delivery.

[Q] What should I do if the instrument I purchase needs repair?

[A] After-sales repair for overseas instruments is an unavoidable issue. Our repair terms stipulate that the sender is responsible for the shipping and insurance costs incurred for the repair. Repairs within the warranty period are free, while repair costs beyond the warranty period are determined based on the actual situation.
