Overview

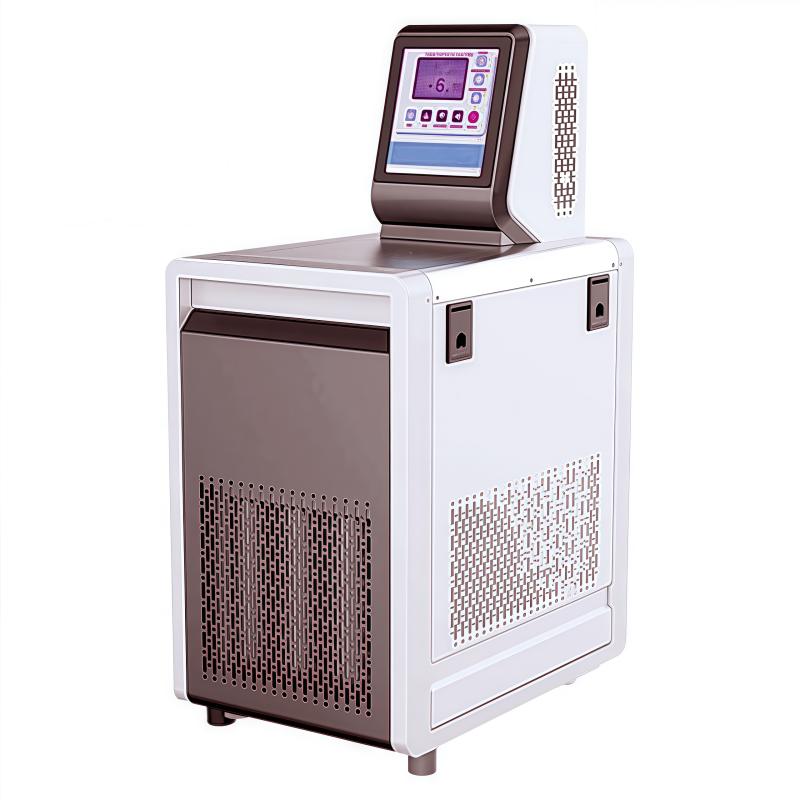

DC-5010N Low Temperature Circulating Bath is a precision temperature control device of Shangtian Jingyi brand. Temperature range is -50~ 100 ℃, temperature resolution is 0.1 ℃, Tank volume is 10L, suitable for precise temperature control needs in laboratory and industrial environments.
Features
1. Adopt a fully enclosed environmentally friendly Compressor refrigeration system, equipped with multiple overheating and overcurrent protection devices
2. Large screen backlit LCD display, clear working status information
3. Equipment instrumentation with temperature calibration and self-tuning functions
4. The control part adopts ABS mold design, the overall Appearance is streamlined
5. High-performance Stirring cycle motor, using non-heat centrifugal circulation pump
6. Plate and liner are made of stainless steel 304 for easy cleaning and durability
7. Refrigeration coil increases positioning and surface preparation process, fine workmanship
8. Motor impeller is fully enclosed to prevent safety hazards
9. The side panels around the equipment can be flexibly disassembled and assembled
10. The circulation interface and drain are all made of stainless steel 304 pagoda joints, and the drain valve is designed with built-in hidden type
11. Standard circulating silicone tube and thermal insulation sleeve, which is convenient for customers to use flexibly
Principle
The Low Temperature Circulating Bath achieves temperature control through a fully enclosed environmentally friendly Compressor refrigeration system, combined with a high-performance Stir cycle motor and a heat-free centrifugal cycle pump, to ensure uniform and stable temperature in the Tank. The equipment and meters precisely adjust the temperature to the set range through temperature calibration and self-tuning functions.
Applications
Laboratory and industrial environment
Steps
1. Connect the power supply and turn on the device.
2. Set the desired temperature through the large-screen LCD display
3. Start the refrigeration system and circulating pump
4. Monitor working status information to ensure stable temperature
5. Turn off the equipment and clean the platen and liner after use
Notice
• Check whether the power supply and connection are safe before use
Avoid operating in humid or flammable environments
• Regularly clean stainless steel platens and liners to maintain hygiene
• Pay attention to prevent damage to the internal components when removing the side panels
• Ensure that the circulation interface and drain are firmly connected to prevent leakage
